Transform any wall switch into a powerful Matter smart controller

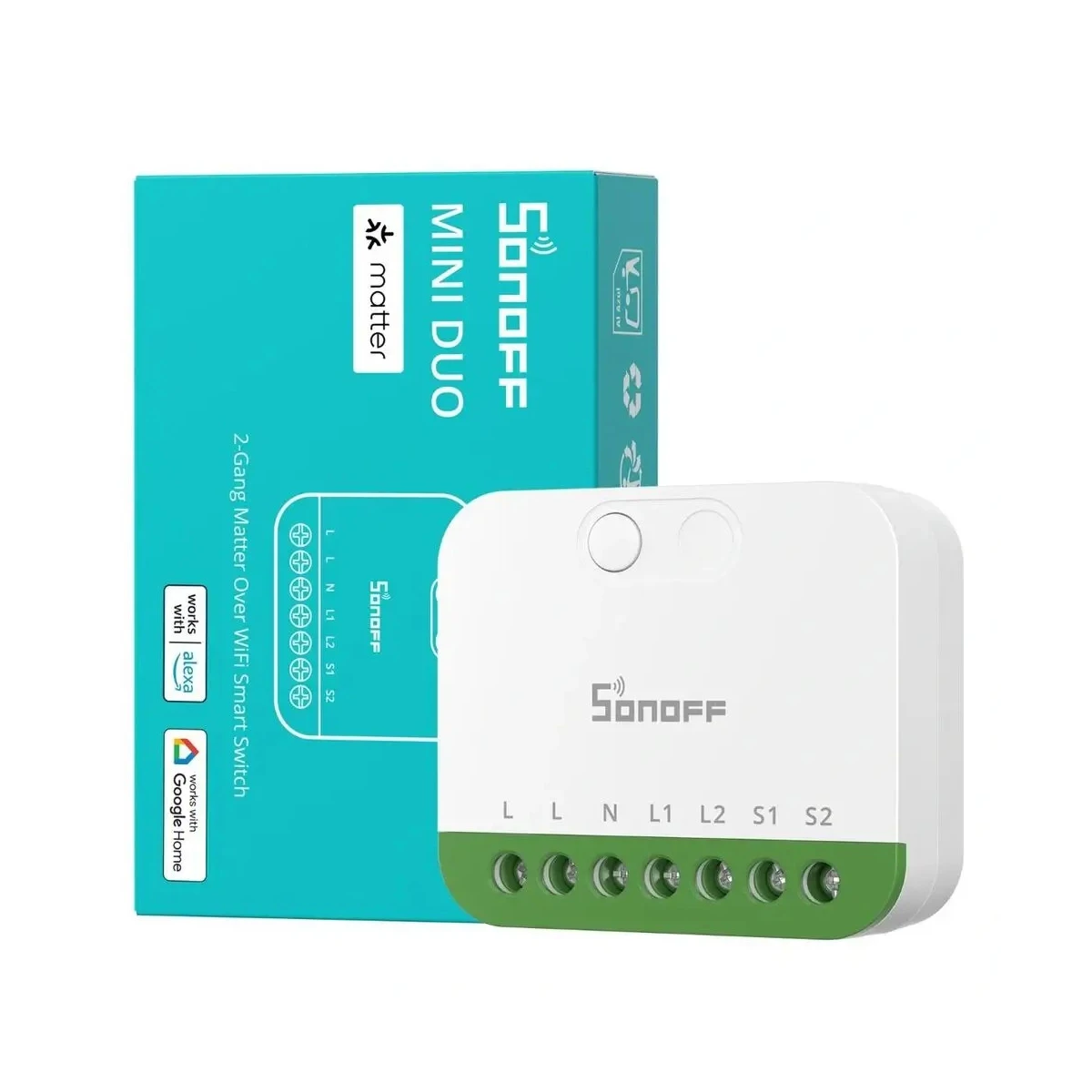

The SONOFF MINI DUO 2-Gang Matter Over WiFi Smart Switch (MINI-2GS) turns a standard wall switch into a compact dual-channel smart hub for your lights and appliances. Thanks to Matter over Wi-Fi, it connects effortlessly to Apple Home, Google Home, Amazon Alexa and Home Assistant, giving you unified, future-proof smart home control in one discreet module hidden in the wall box.
With two independently controlled outputs supporting up to 16A total, detachable relay mode and flexible power-on behaviour, MINI DUO is ideal for upgrading existing circuits without changing your favourite switches. Create smart scenes, schedules and automations, while keeping traditional manual control whenever you need it.
Main smart features

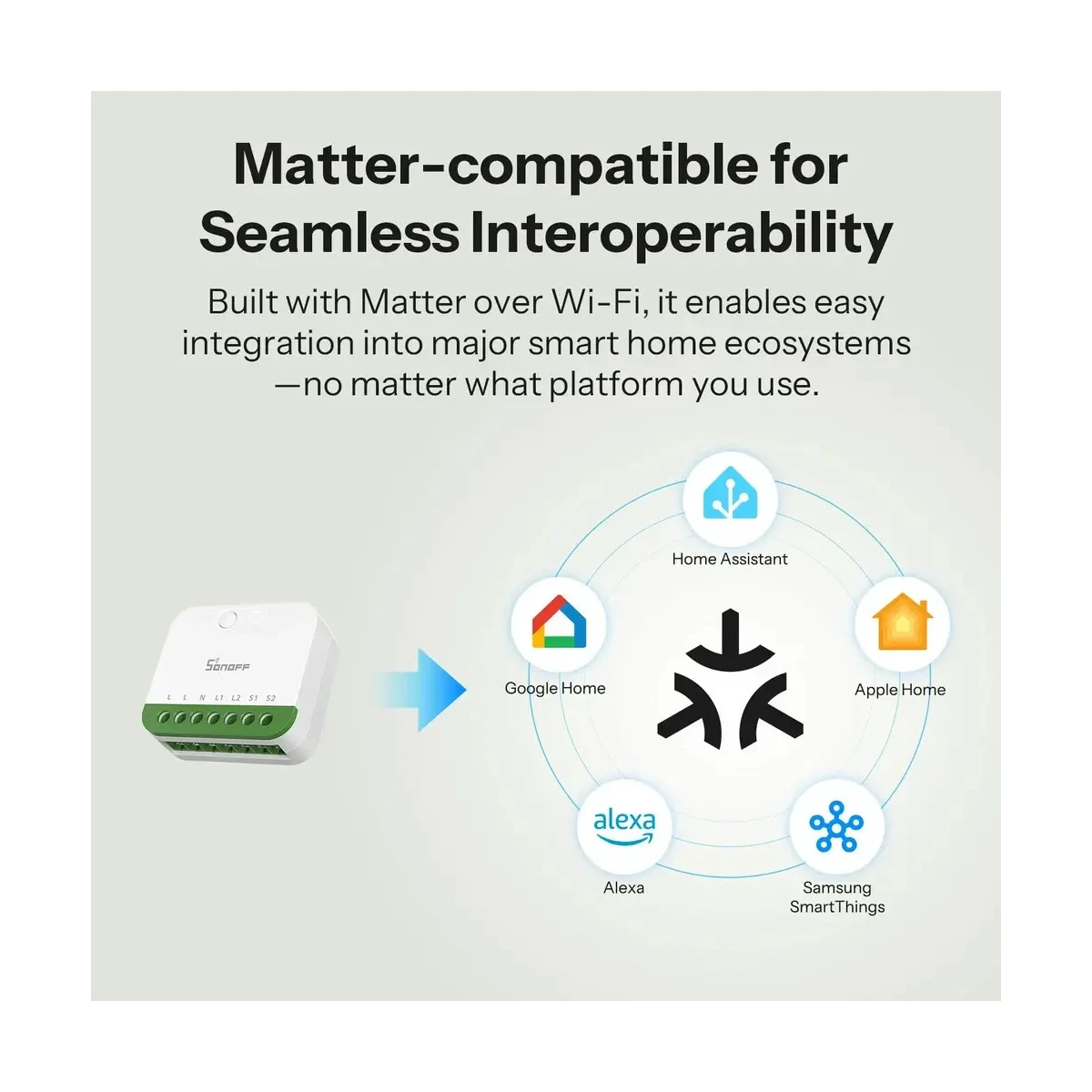

- Matter-compatible smart switch: Works across major ecosystems including Apple Home, Google Home, Amazon Alexa and Home Assistant for unified control.

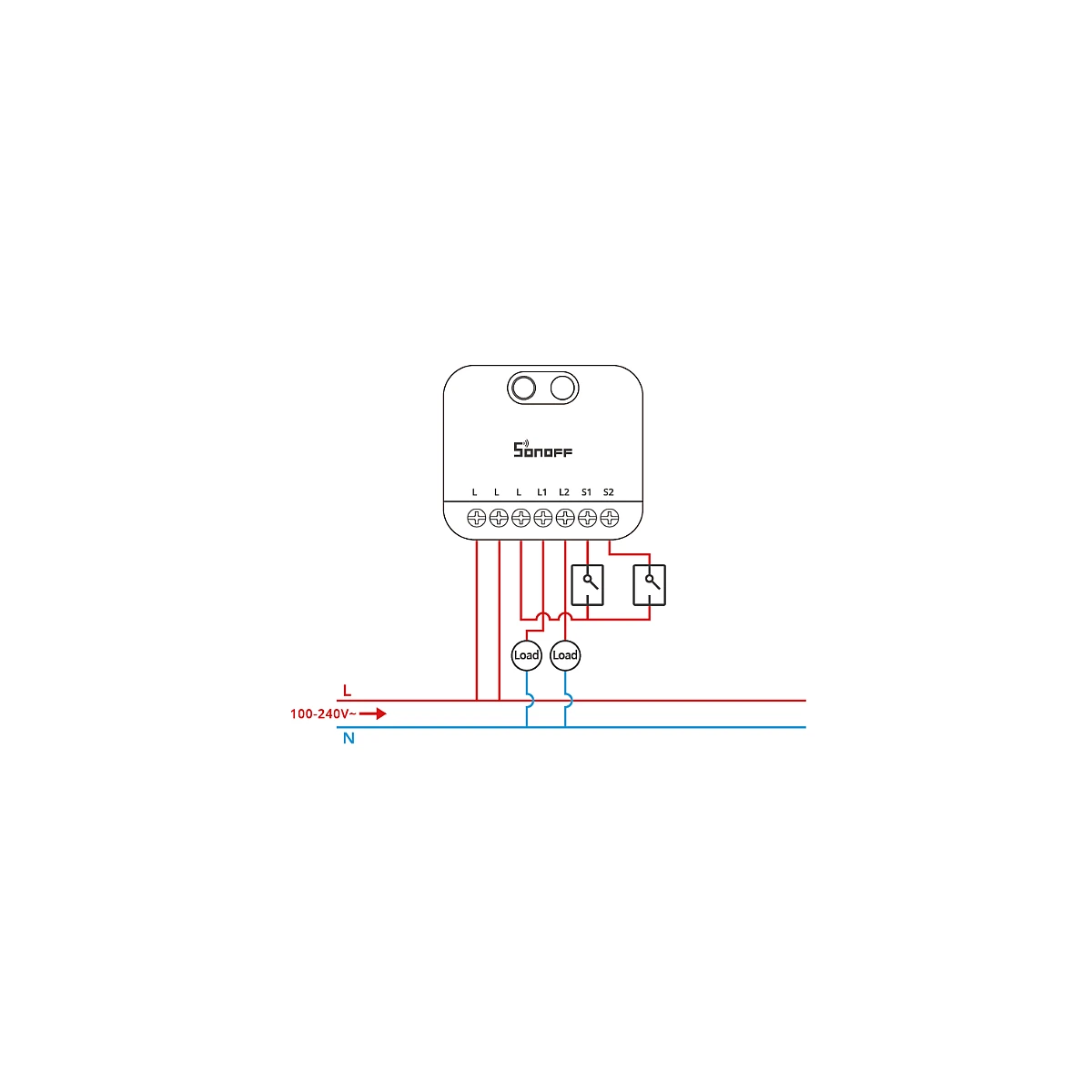

- 2-gang dual-load design: Two independent channels with a combined resistive load of up to 16A let you control two separate lighting circuits or appliances.
- Detach Relay mode: Decouple the relay from the external switch and turn the physical button into a smart trigger for scenes and smart bulbs.
- Smart automations & remote control: Manage the switch from anywhere via mobile apps, timers, schedules and advanced scenes.
- Voice assistant support: Hands-free control via Amazon Alexa, Google Assistant and Apple Siri Shortcuts.

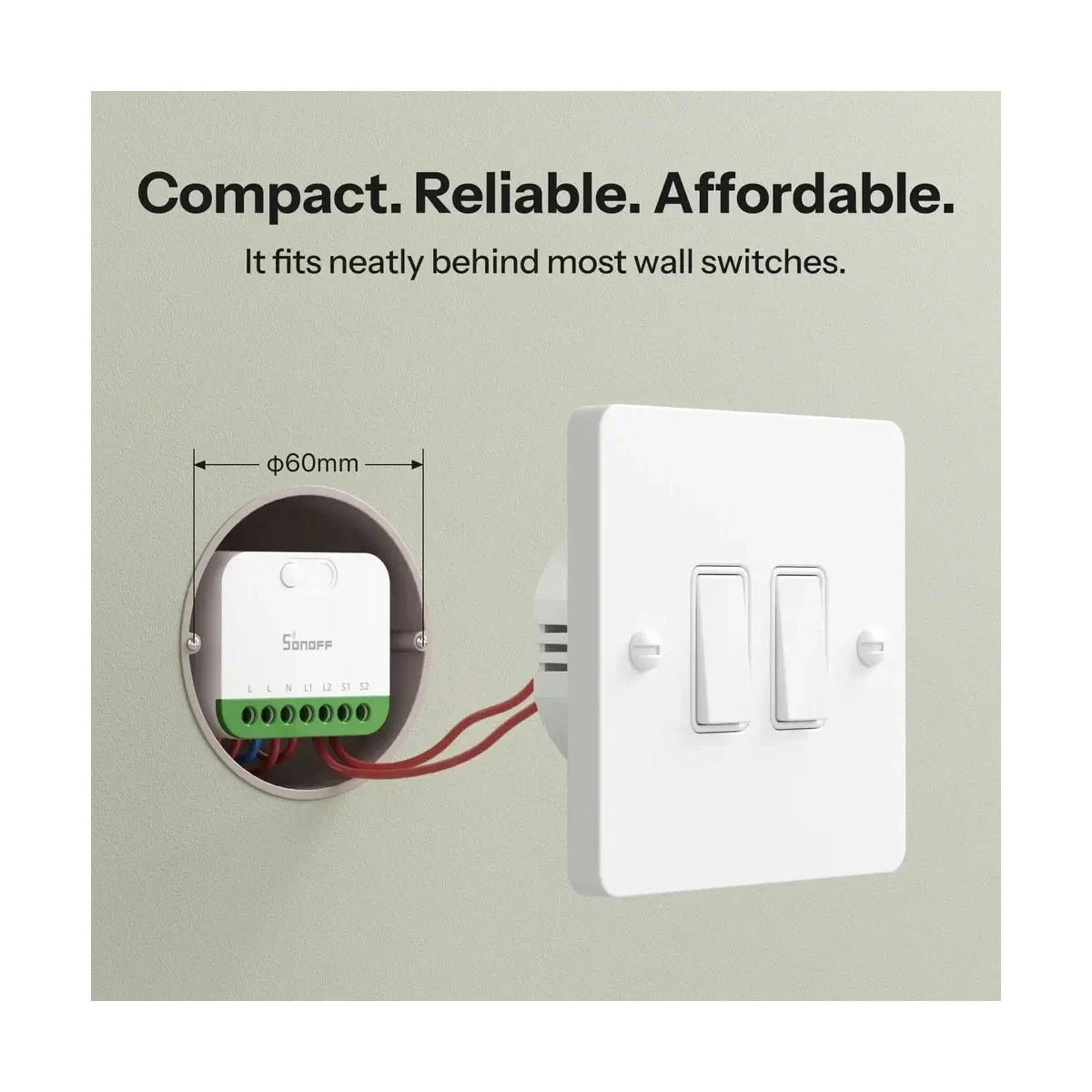

- Compact for EU wall boxes: Ultra-small housing designed to fit behind most wall switches; ideal for 60 mm European junction boxes (min. depth 60 mm recommended).

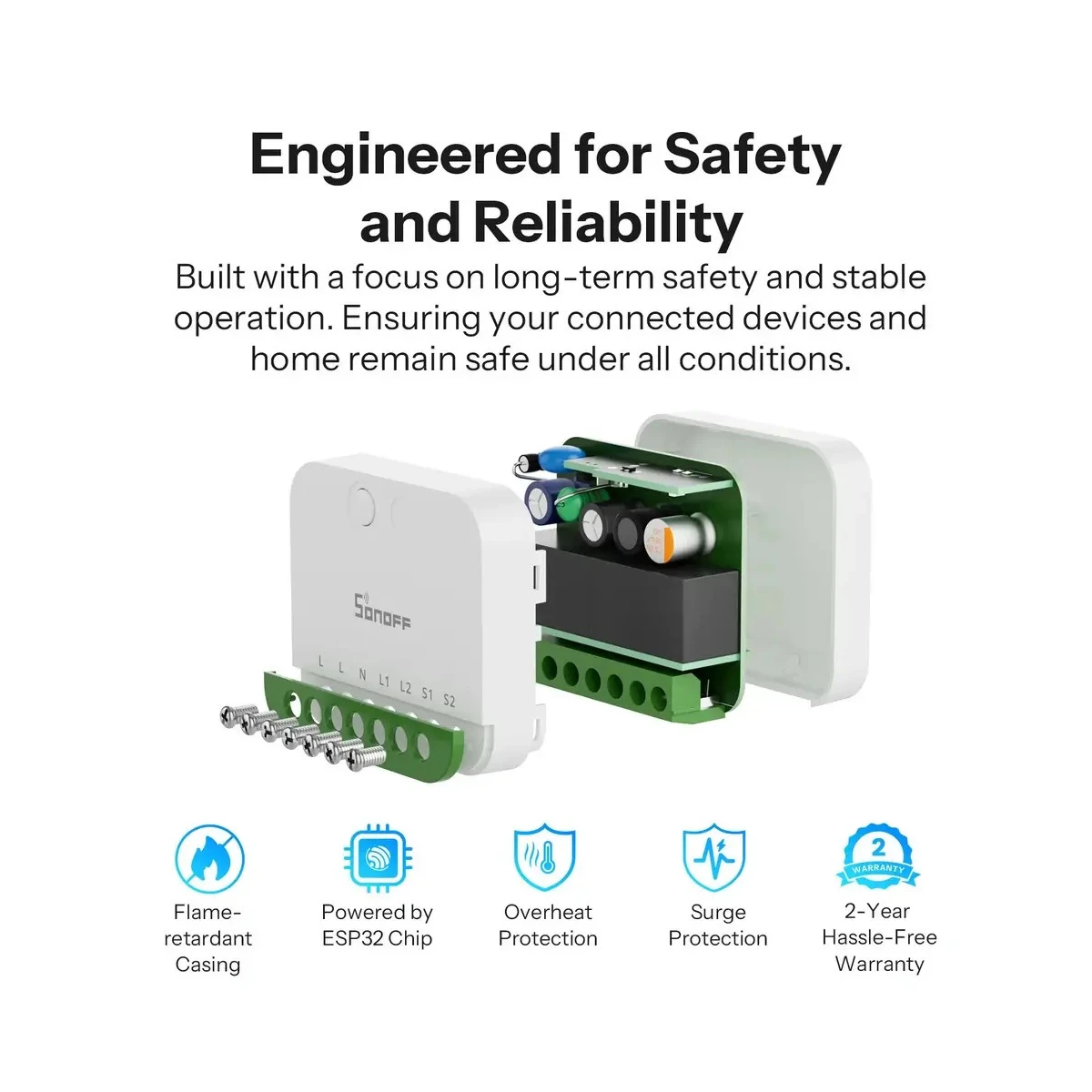

- Safe and reliable operation: Built-in overheat and surge protection and robust PC housing for long-term stability.
- Flexible power-on behaviour: Choose whether the outputs turn on, off or restore last state after a power outage.

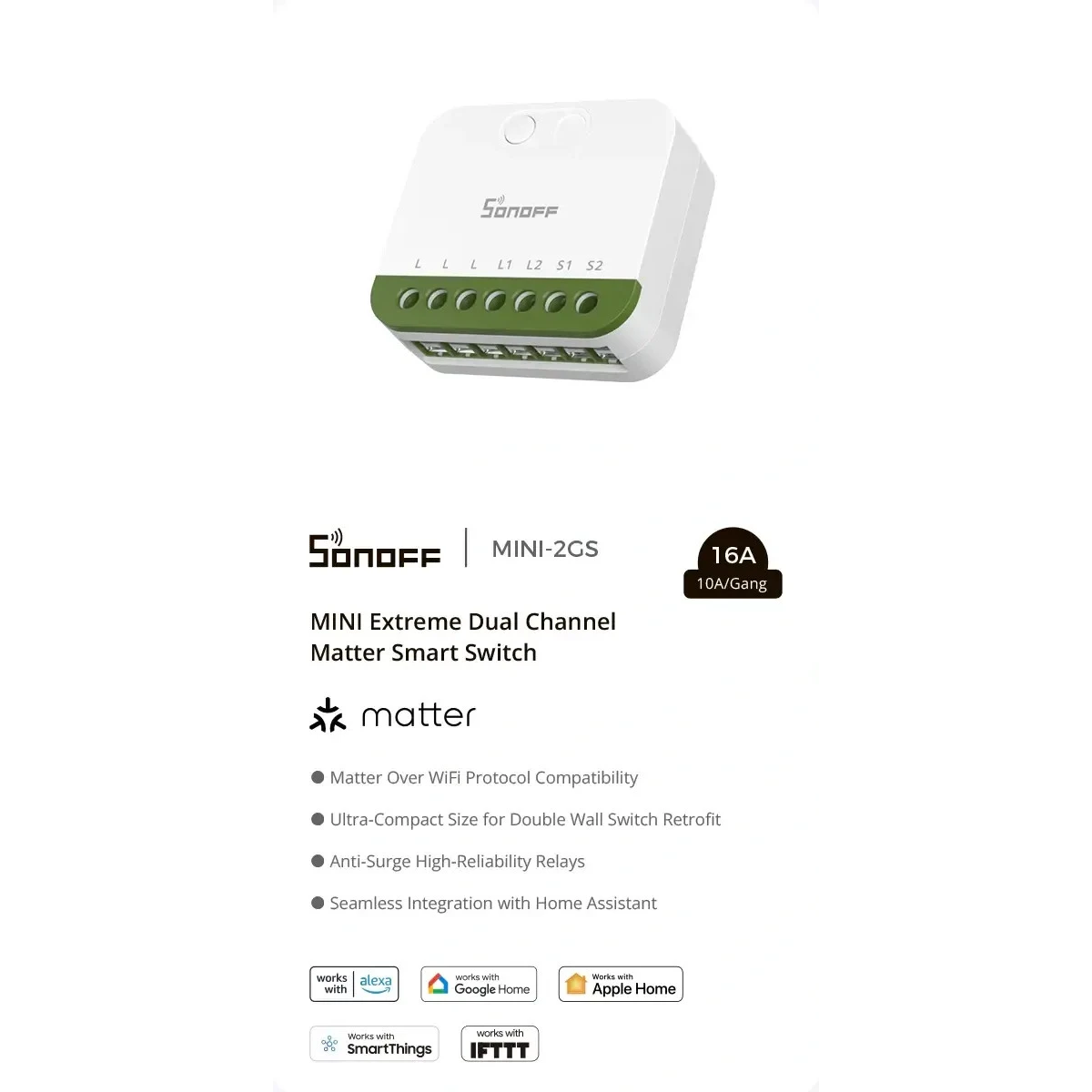

Technical specifications – SONOFF MINI DUO MINI-2GS

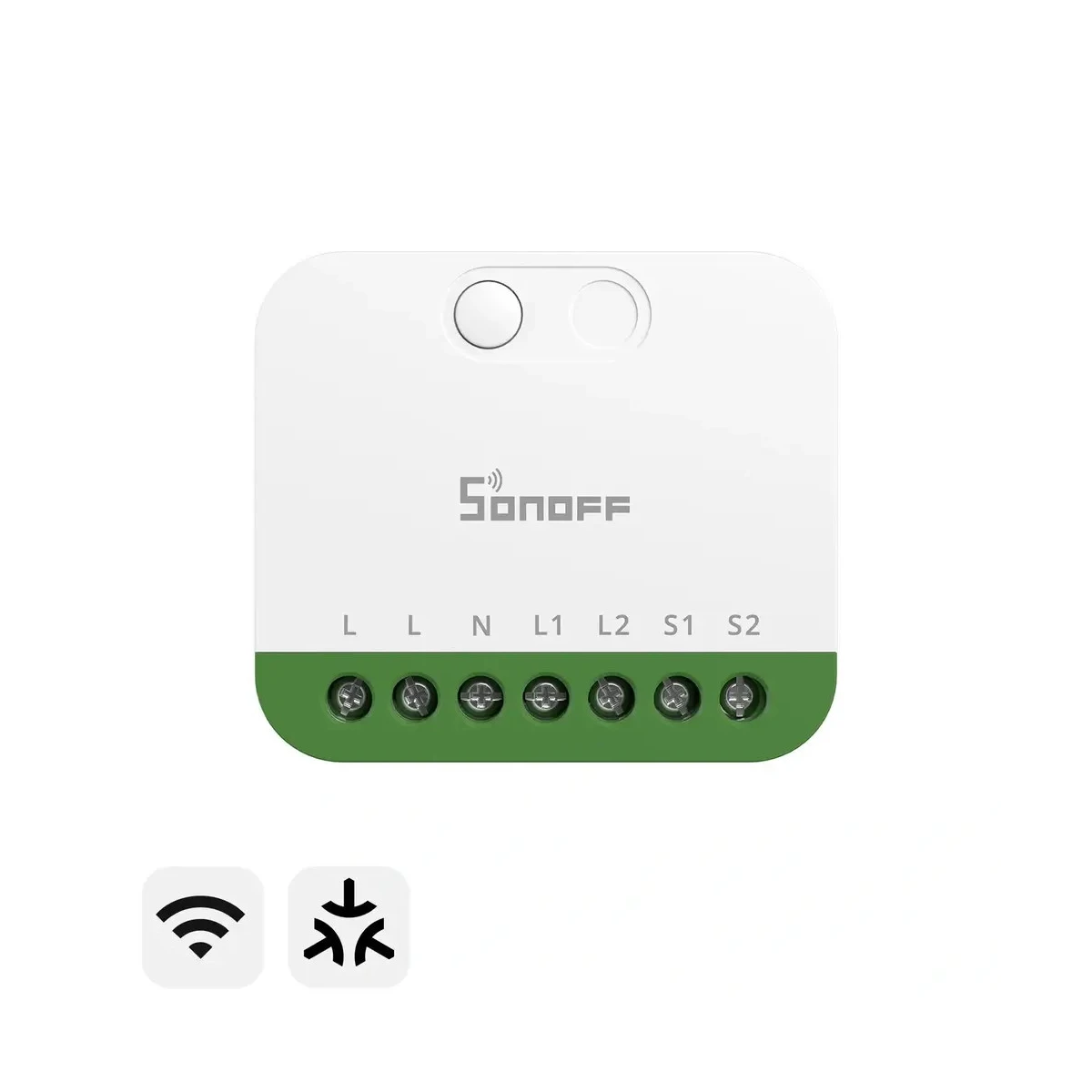

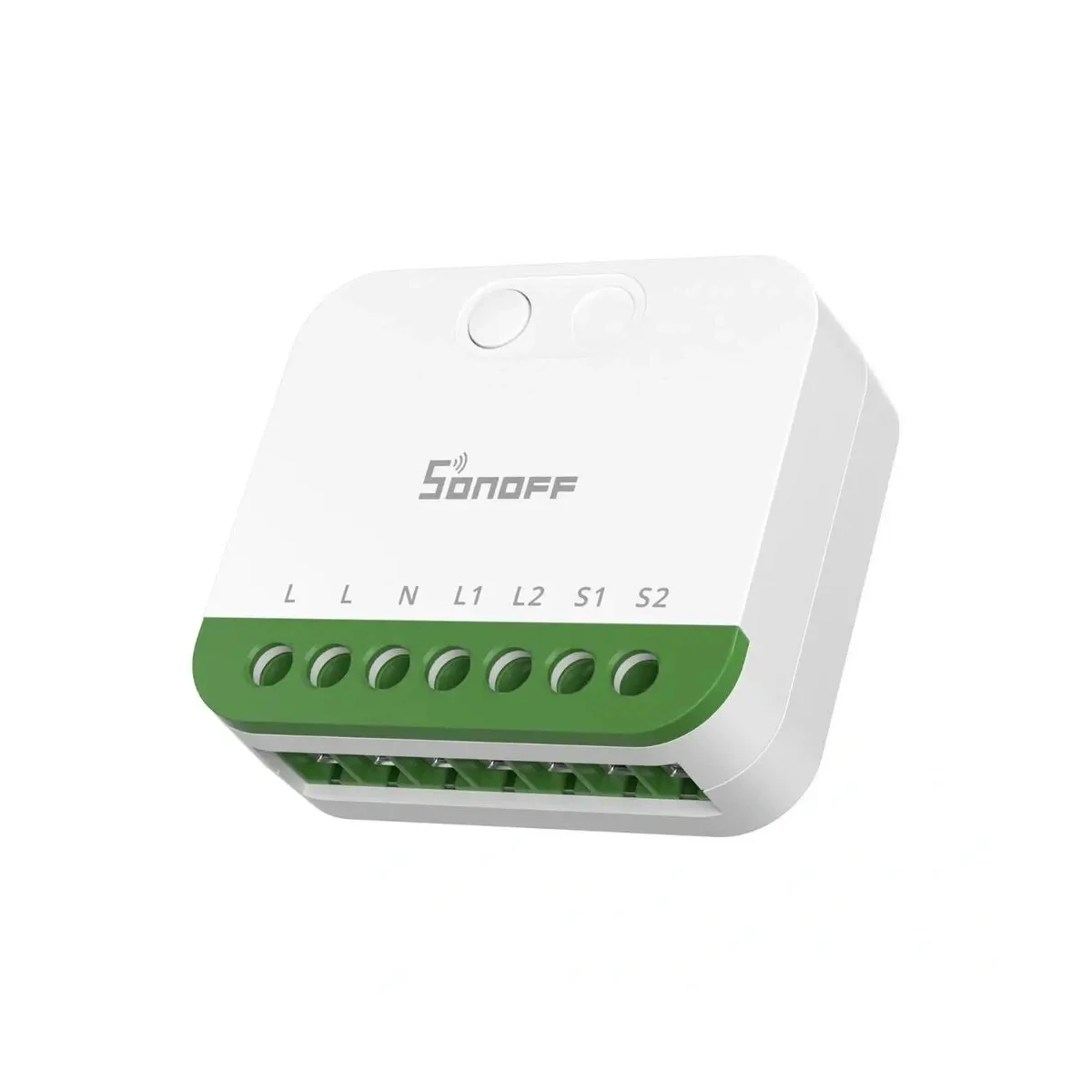

- Product name: SONOFF MINI DUO
- Product series: MINI Extreme series
- Model: MINI-2GS
- MCU: ESP32-C3FH4X
- Power supply: 110–240 V~ 50/60 Hz
- Maximum load: 10 A per channel, 16 A total (resistive load)
- Wireless connection: Wi-Fi IEEE 802.11 b/g/n 2.4 GHz
- Protocol: Matter over Wi-Fi
- Net weight: 36.5 g
- Product dimensions: 45 × 39.4 × 16.8 mm
- Recommended mounting box depth: ≥ 60 mm
- Operating temperature: -10 °C to +40 °C (10T40)
- Operating humidity: 5 %–95 % RH, non-condensing
- Housing material: PC (flame-retardant)
- Certifications: CE / FCC / RoHS
- Remote access: Yes, via Wi-Fi and compatible Matter platforms

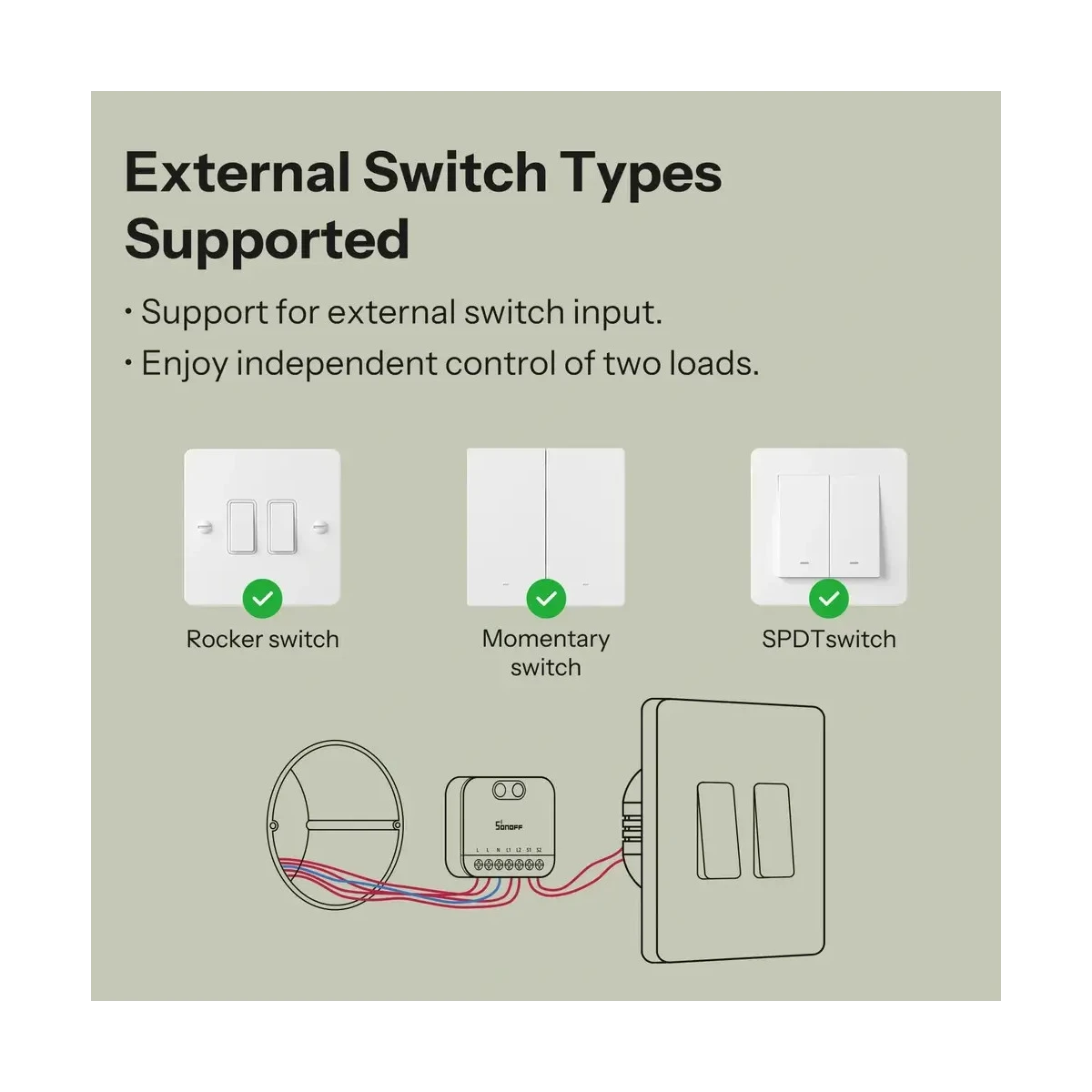

- External switch support: Compatible with existing wall switches for combined smart and manual control
- Not for curtains: MINI DUO does not support motor interlock or position control; for curtain motors use a dedicated curtain controller.
