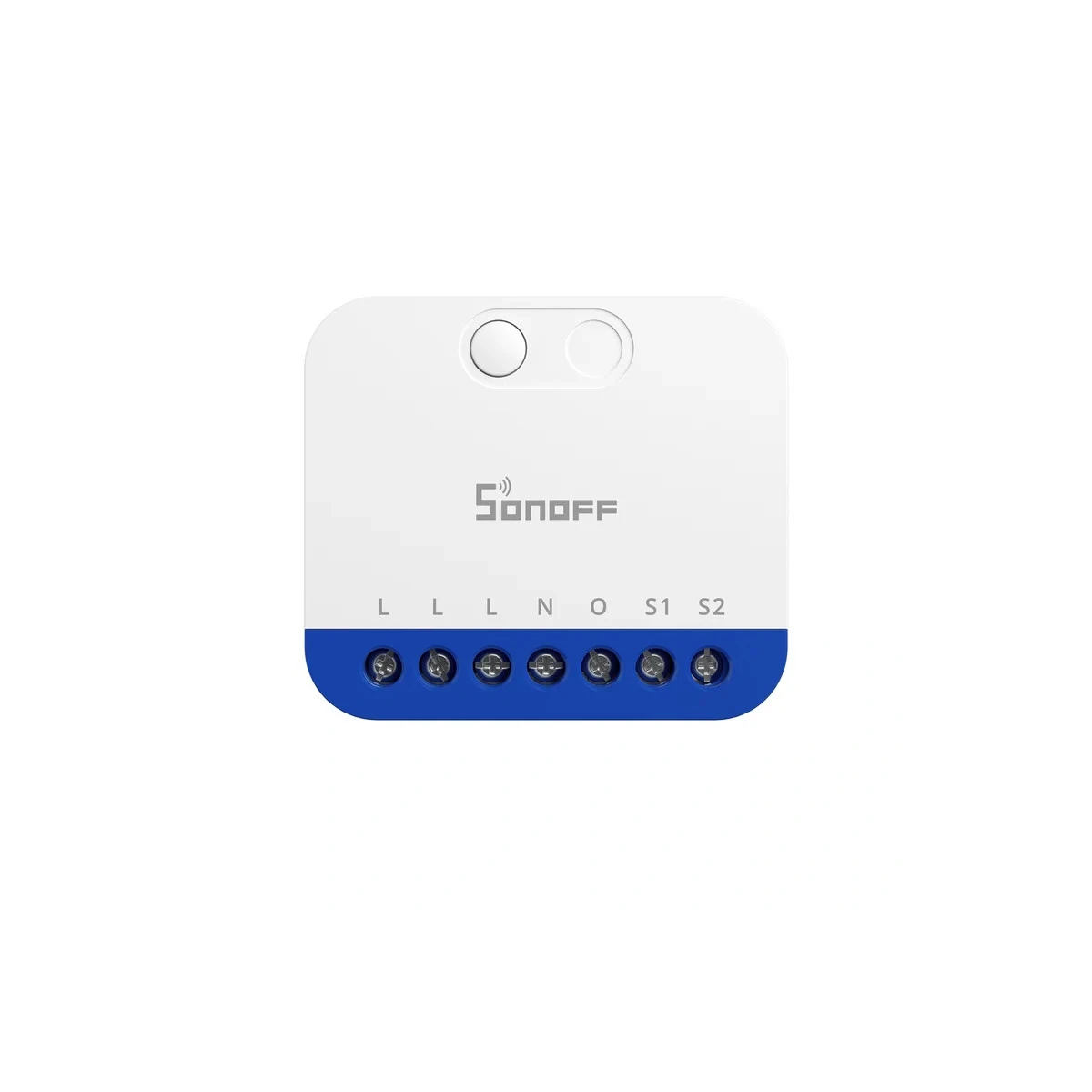

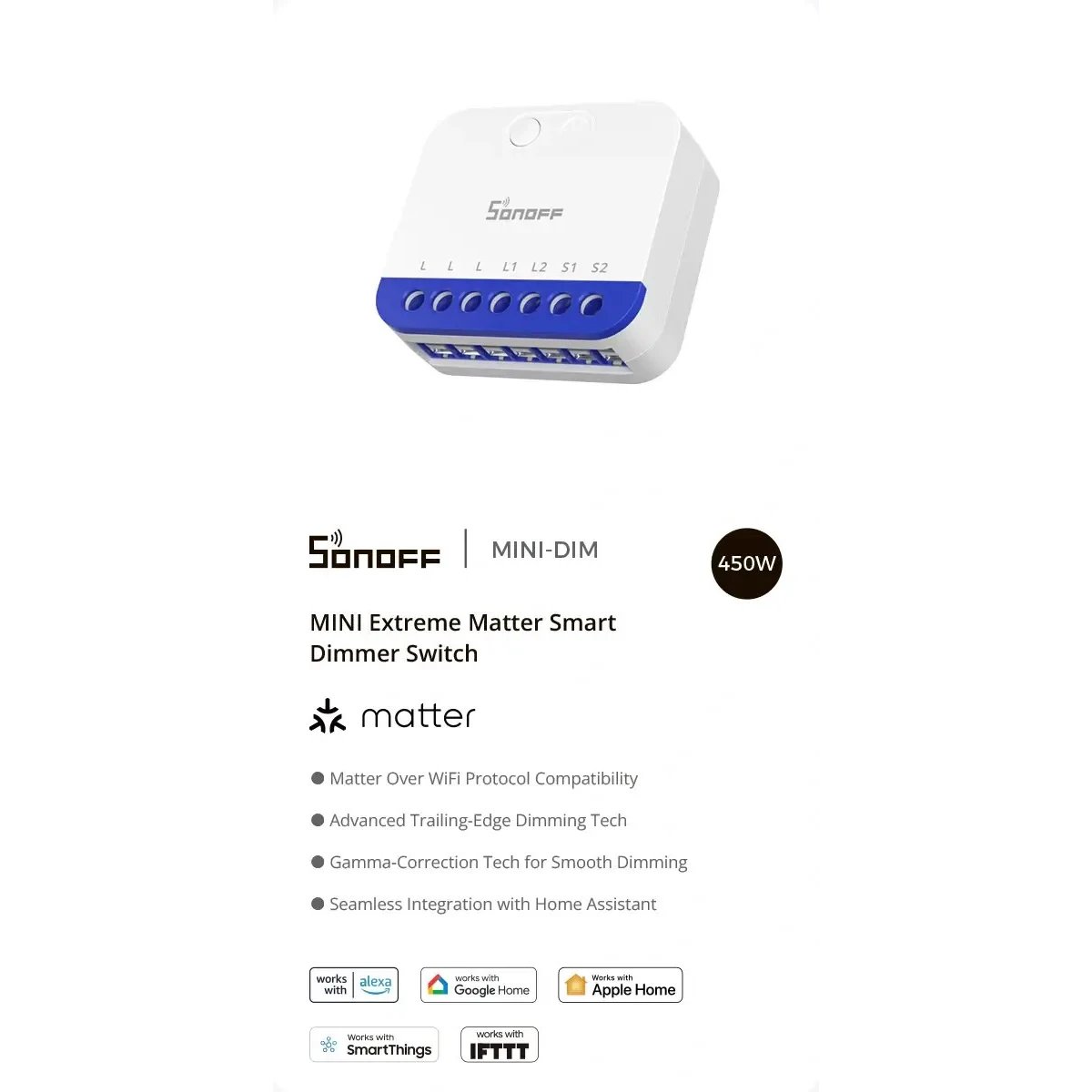

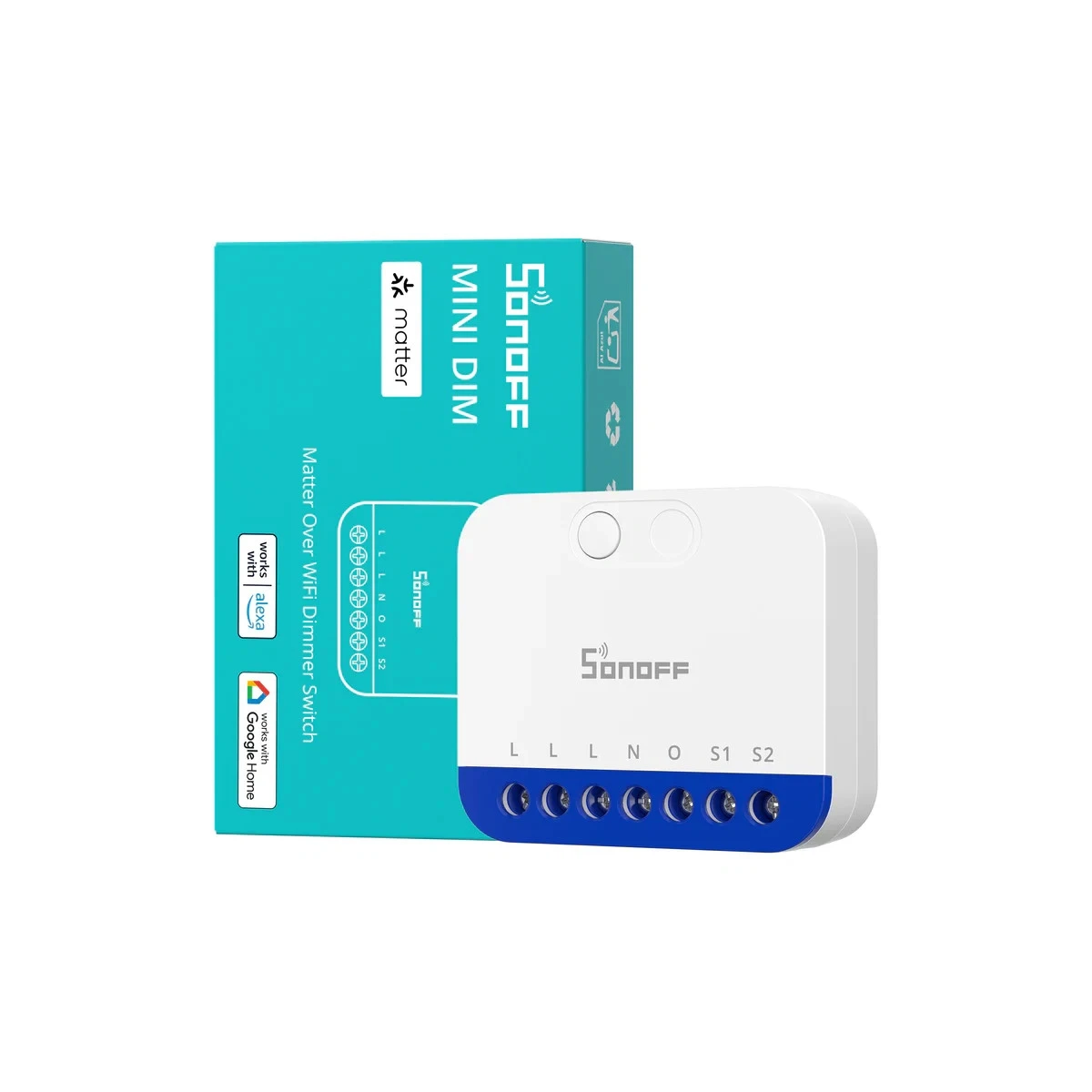

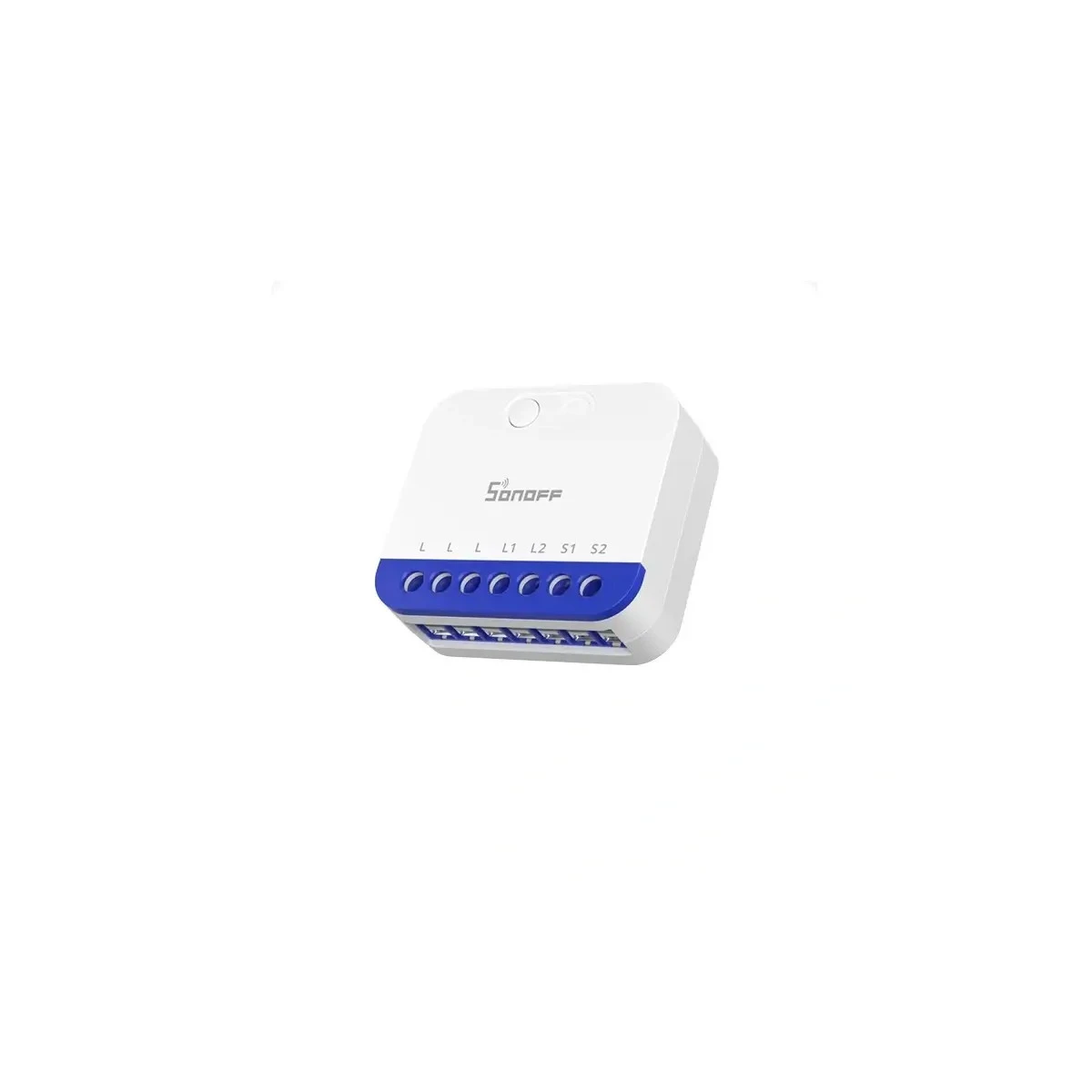

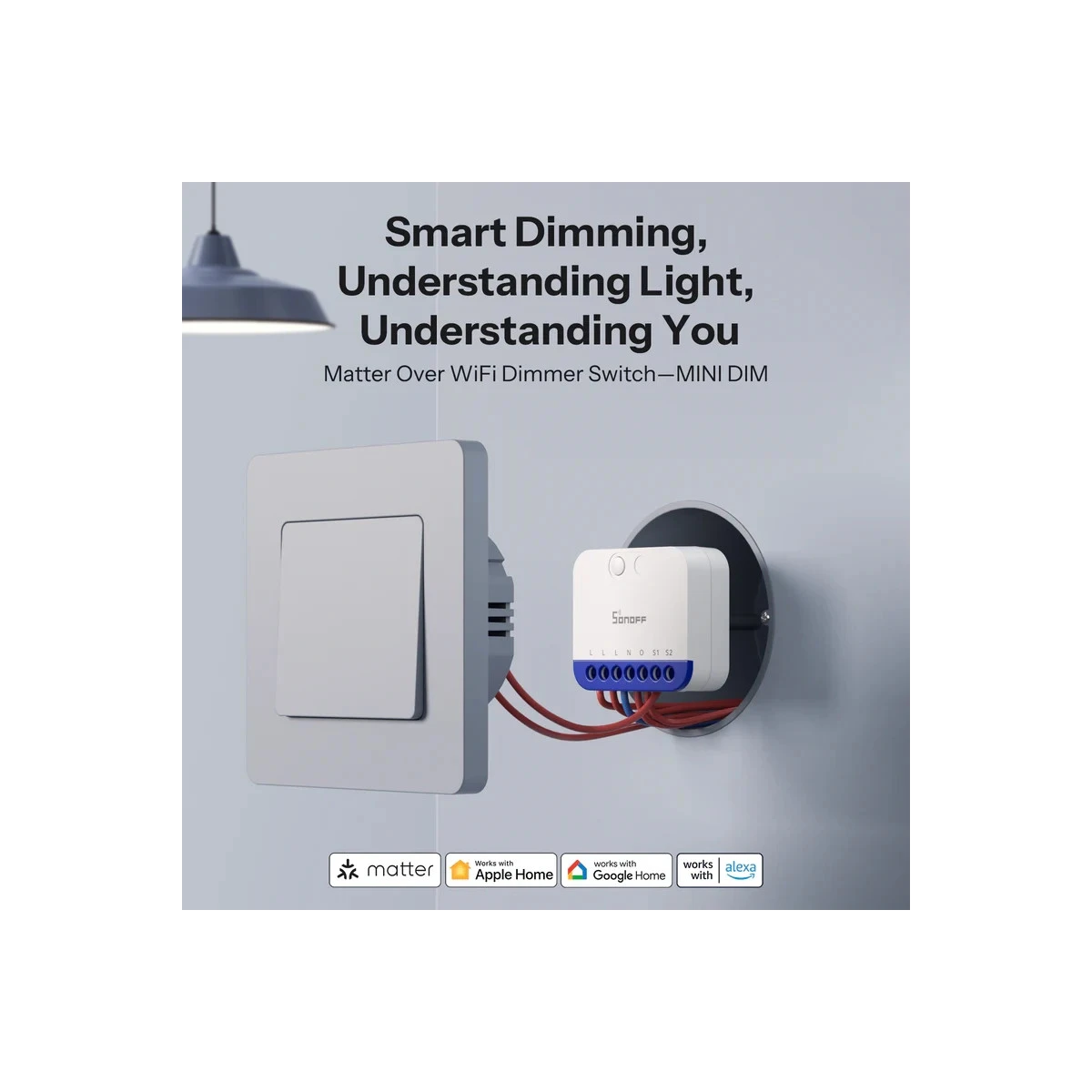

Turn a standard 220–240 V lighting circuit into a modern Matter over Wi-Fi smart dimmer switch with the SONOFF MINI-DIM. Hidden behind your wall switch, MINI-DIM brings flicker-free LED dimming, voice control, automations, and real-time power monitoring—all in a compact “MINI Extreme” form factor.
If you’re browsing more options for smart lighting upgrades, explore dimming modules or the full SONOFF smart home range on SmarterHOME.

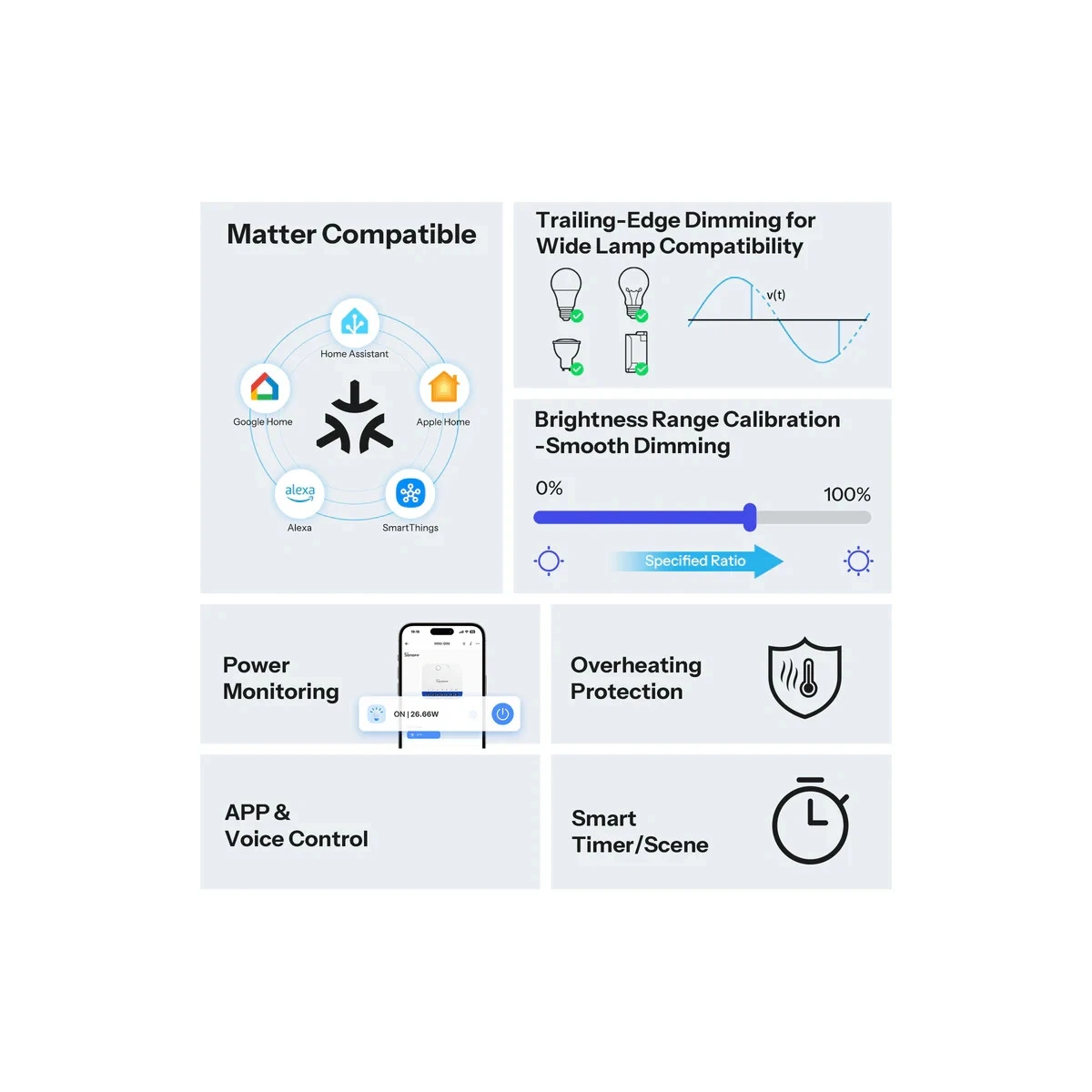

Matter over Wi-Fi: one dimmer for Apple Home, Google Home, Alexa
MINI-DIM is built for the Matter smart home ecosystem, so you can integrate it into Apple Home (Siri on iPhone/iPad/Apple Watch), Google Home, or Amazon Alexa for cross-platform scenes and hands-free brightness control. To add it into Matter, you’ll need a compatible Matter Hub / controller—see available smart home hubs if you’re building a unified setup.
Want advanced local automation and broad compatibility? Pair Matter devices with Home Assistant for powerful dashboards, rules, and integrations.
Calibrated, stable dimming (trailing-edge) that matches your bulbs
Different bulbs react differently at low and high brightness. MINI-DIM supports automatic or manual calibration to “learn” your fixture’s usable dimming range—helping deliver smoother transitions, stable steps, and a more consistent brightness curve. The trailing-edge dimming approach is especially friendly to many modern dimmable LED lamps.
- Auto / manual brightness calibration for better compatibility with real-world fixtures
- Smoother fades and reduced flicker for comfortable everyday lighting
- Voice dimming & scenes for instant mood lighting
Energy insights + built-in overheat protection
MINI-DIM continuously measures and syncs power consumption data, so you can see how brightness changes affect energy use in real time—useful for efficiency-focused smart home routines. For safer operation, the device includes temperature detection with alerts and automatic cut-off if overheating is detected, protecting both the module and your lighting circuit.
Flexible wall switch control (two locations) + smart timers

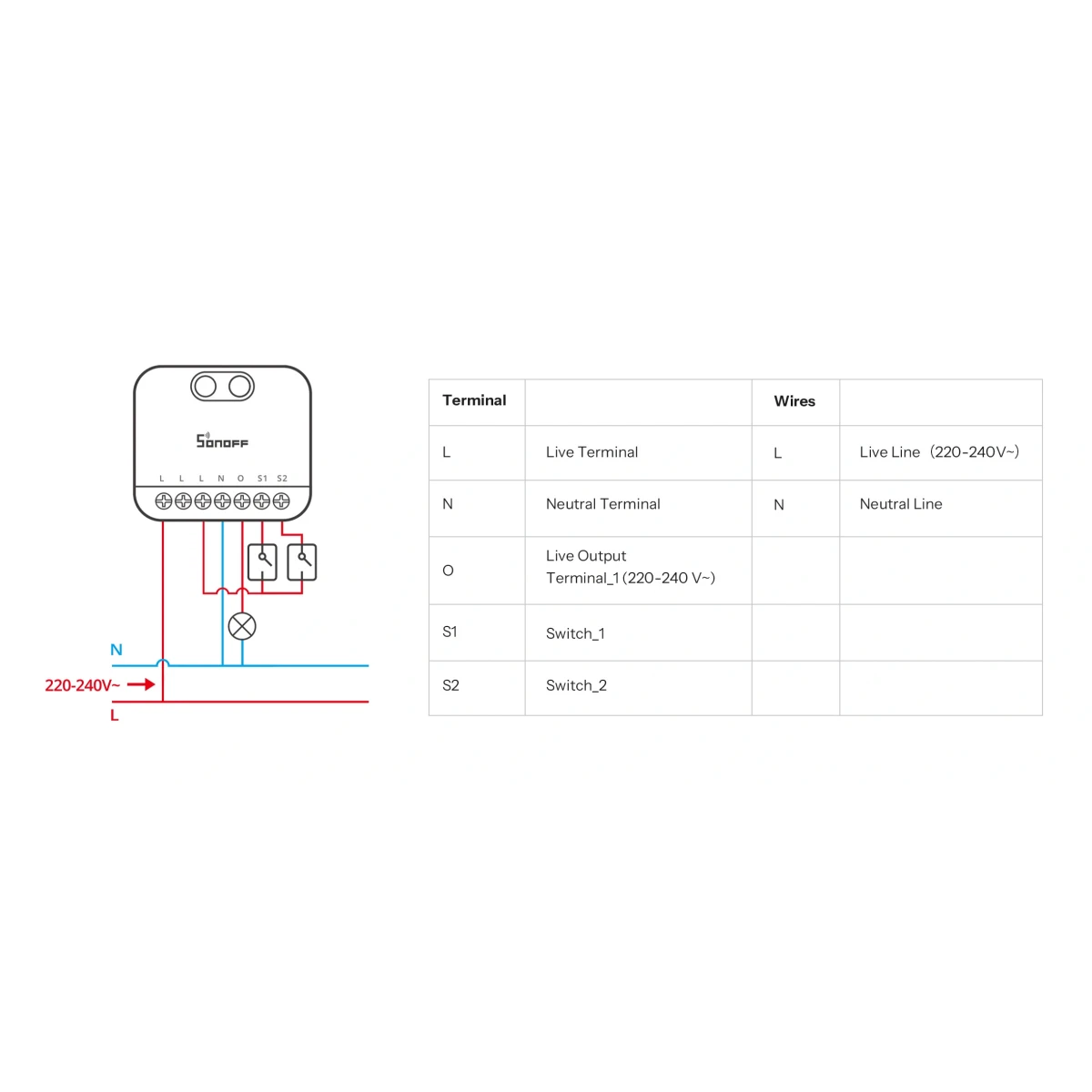

Keep your familiar wall controls: MINI-DIM supports two external switches (momentary or rocker) controlling the same light from two locations—ideal for hallways or staircases. Add smart timers, delayed actions, recurring schedules, and “night light” routines so your home lighting follows your daily rhythm.
If you want ON/OFF Matter over Wi-Fi without dimming for another circuit, consider the compact SONOFF switch module MINIR4M (Matter-enabled). Prefer Zigbee dimming? Check SONOFF MINI-ZBDIM.
Technical specifications
- Model: MINI-DIM (MINI Extreme series)
- Rated voltage: 220–240 V (EU) only
- Rated frequency: 50 Hz
- Max load / current: 2 A
- Wi-Fi: 2.4 GHz
- Dimensions: 45 × 39.4 × 16.8 mm
- Net weight: 24.5 g
- Working temperature: −10 °C to +40 °C
- Casing material: PC
Supported lighting / transformer types
- Dimmable LED lamps: up to 200 VA
- Incandescent lamps: up to 400 W
- Halogen lamps: up to 400 W
- Dimmable electronic transformers: up to 200 W
Important note
220–240 V only. Do not exceed or go below the rated voltage limits, and always perform brightness calibration before daily use for best dimming stability.
