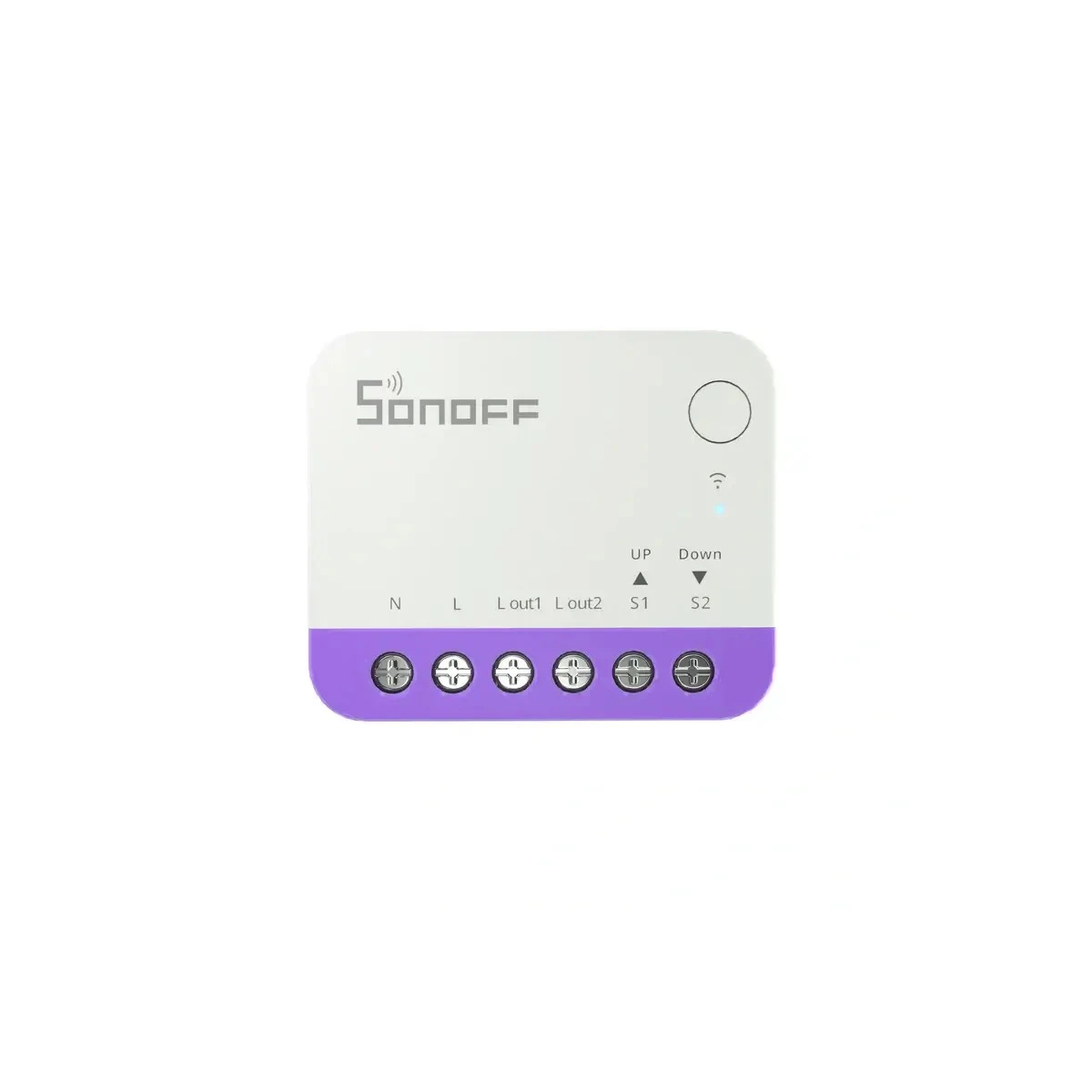

SONOFF MINI-RBS Wi-Fi Smart Roller Shutter Switch

Опис

Why the MINI-RBS excels:

• Precise Percentage Control: Set the roller shutters, e.g., to 12% or 47% for the ideal atmosphere and reduced glare.

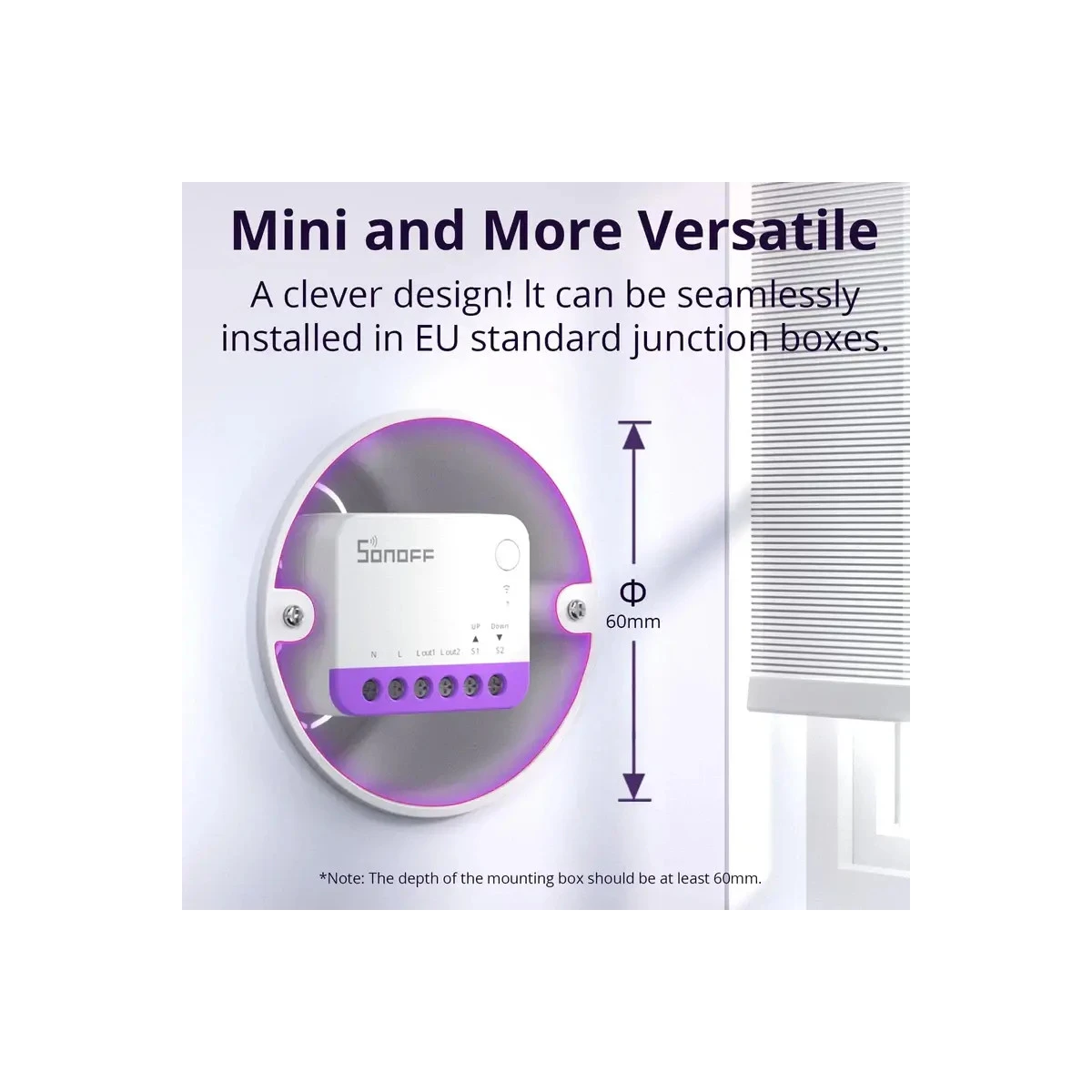

• Ultra-Compact Design: The module easily fits into standard EU boxes Ø60 mm and narrow spaces.
• Matter Compatibility: Unified control in Apple Home, Google Home, and Amazon Alexa (Matter hub required).
• Scheduler and Routines: Opening/closing at precise times according to your daily rhythm.
• Calibration and Longer Lifespan: Correction of movement deviations protects the motor and maintains accuracy.
• Voice Control: Control the roller shutters completely hands-free – conveniently and instantly.
• Local Control: Pair with a SONOFF scene controller for stable, network-independent use.

SONOFF MINI-RBS Technical Specification:

• Model: MINI-RBS
• Input Voltage: 100–240 V~ 50/60 Hz
• Motor Load: 100–240 W / 1 A (max.)
• Wireless: Wi-Fi IEEE 802.11 b/g/n (2.4 GHz)
• Features: Percentage positioning, scheduling, deviation calibration
• Ecosystem: Matter (Apple Home, Google Home, Alexa; hub required)
• Form Factor: Mini module for EU boxes Ø60 mm
• Material: PC (Polycarbonate)
• Operating Temperature: −10 °C to 40 °C
• Package Contents: SONOFF MINI-RBS smart roller shutter controller, quick guide, and user manual

Installation and Safety:

• Verify that the motor meets the limits of 1 A / 100–240 W.
• Check the wiring and the motor’s direction of rotation before calibration.
• When using with ERBS, maintain a box depth of > 30 mm.
• If you are unsure about working with voltage, entrust the installation to a specialist.
