Smart dimming that feels natural (and looks premium)

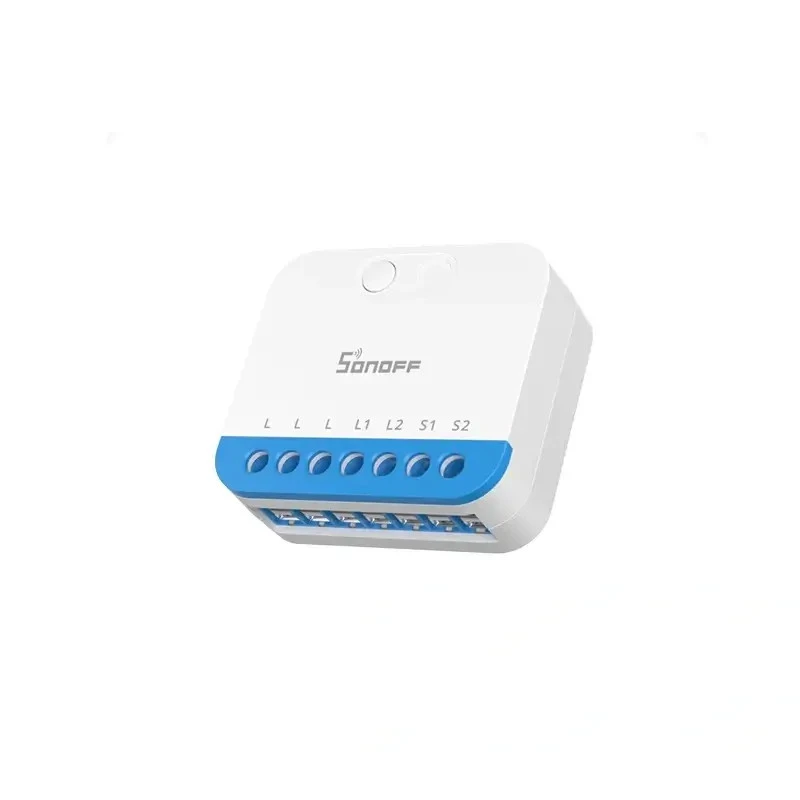

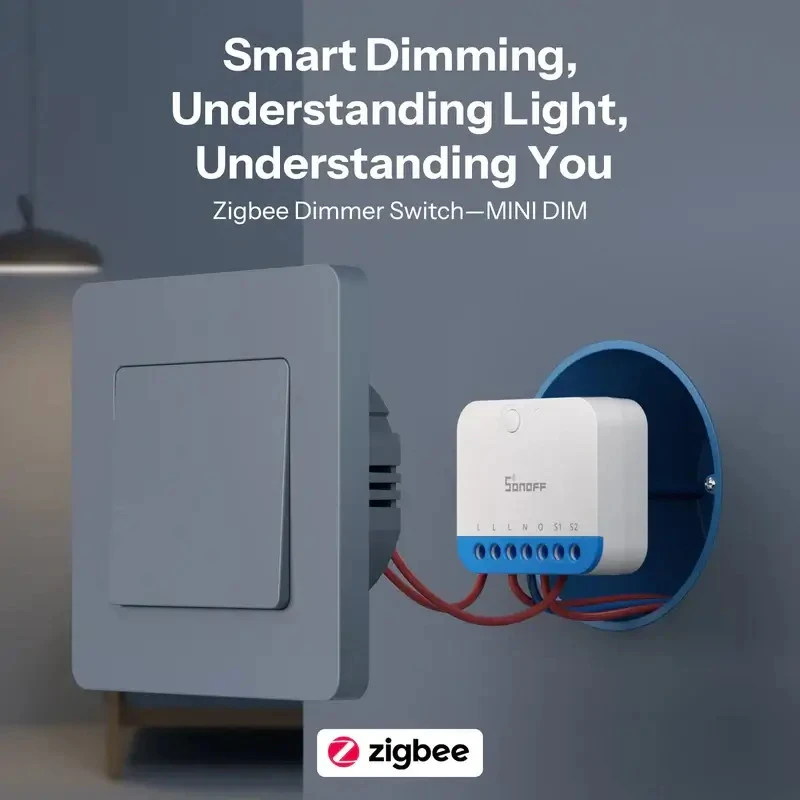

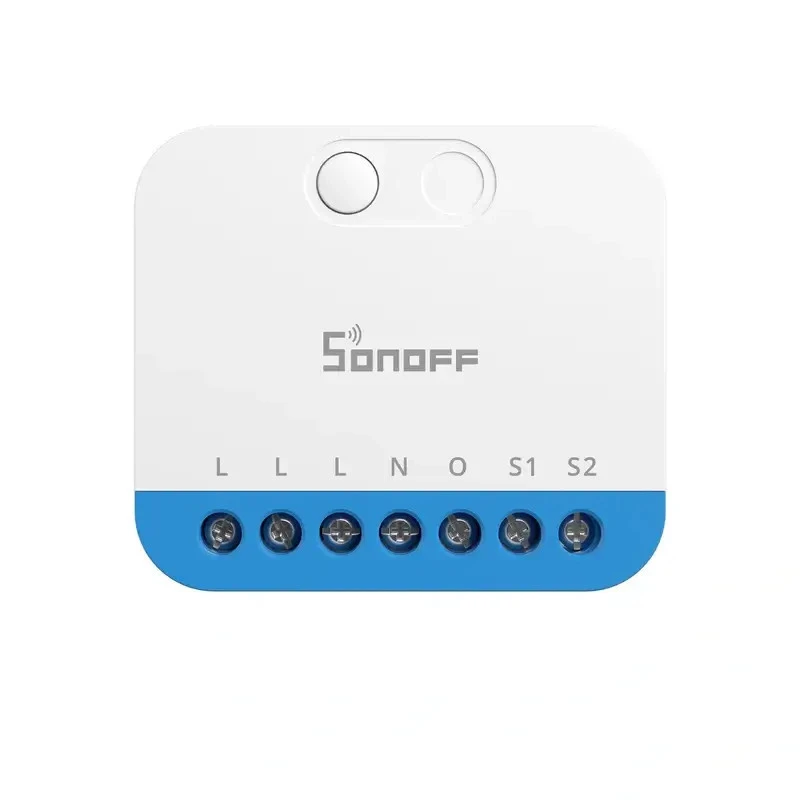

SONOFF MINI-ZBDIM is a compact in-wall Zigbee 3.0 dimmer switch built for modern homes that want flicker-free LED dimming, real-time energy insights, and rock-solid automation. Hide it behind your existing wall switch and control your lights via app, scenes, schedules, or voice (via your hub) while keeping everyday switching intuitive.

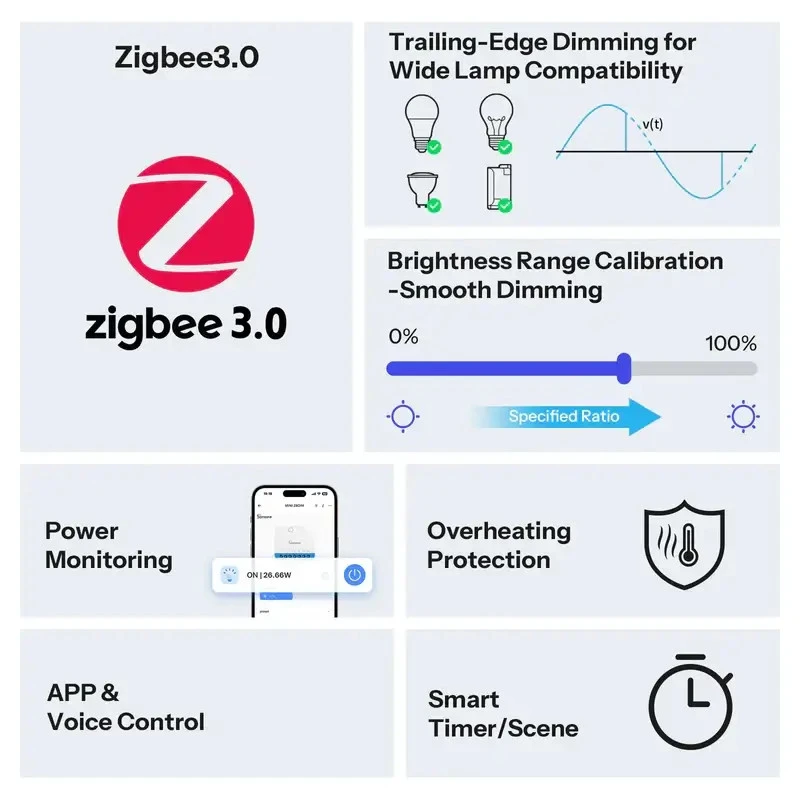

Thanks to trailing-edge dimming and brightness range tuning, MINI-ZBDIM adapts to different bulbs and fixtures, delivering stable brightness from cozy night mode to full output. Explore more dimming modules or build a complete smart lighting setup for your home.
Made for Zigbee automations (local control included)
MINI-ZBDIM fits perfectly into a scalable Zigbee smart home: it supports fast reactions, reliable scenes, and can also help strengthen coverage by acting as a Zigbee router in the mesh. Prefer a privacy-first controller? Pair it with Home Assistant via ZHA or Zigbee2MQTT and keep lighting logic local.
Energy detective for every dim level
Unlike basic dimmers, MINI-ZBDIM provides real-time power monitoring, showing you how consumption changes with brightness—perfect for energy-aware households and fine-tuning automations (for example, dim to 40% after 22:00 for comfort and efficiency).
Two-way control from two locations

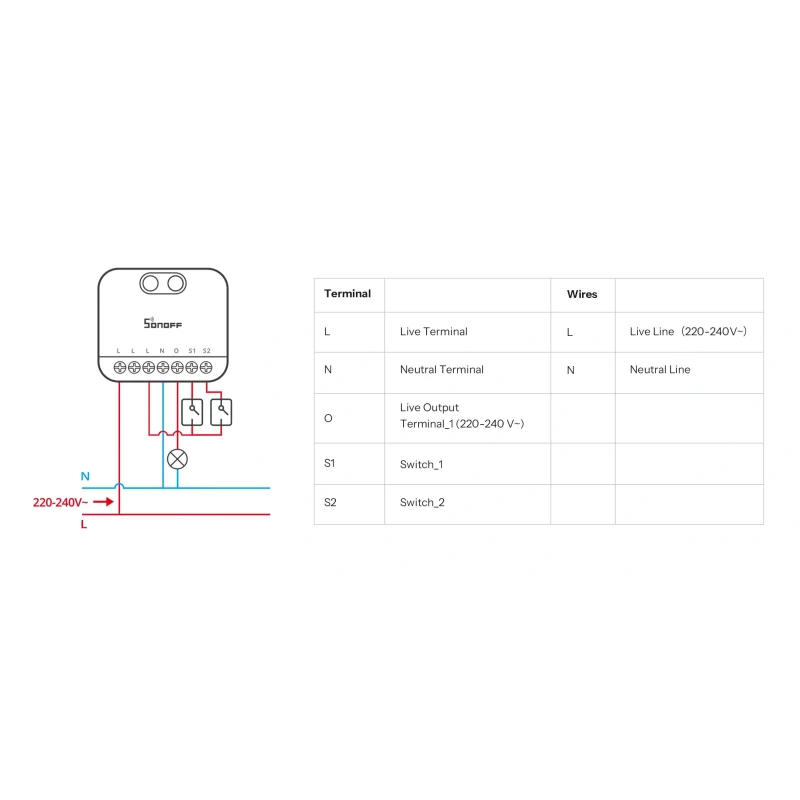

Need the same light controlled from different places? MINI-ZBDIM supports two external switches (momentary or rocker), giving flexible control for hallways, staircases, bedrooms, and multi-entry rooms—no constant walking back and forth.
Built-in protection for safer operation
Integrated temperature sensing adds an extra safety layer. If overheating is detected, the device alerts and stops output to protect both the dimmer and your connected lighting circuit.
Recommended ecosystem
For a consistent experience, combine MINI-ZBDIM with other SONOFF devices from the SONOFF range and create cross-device scenes (lights + sensors + switches) in one automation flow.
Technical specification

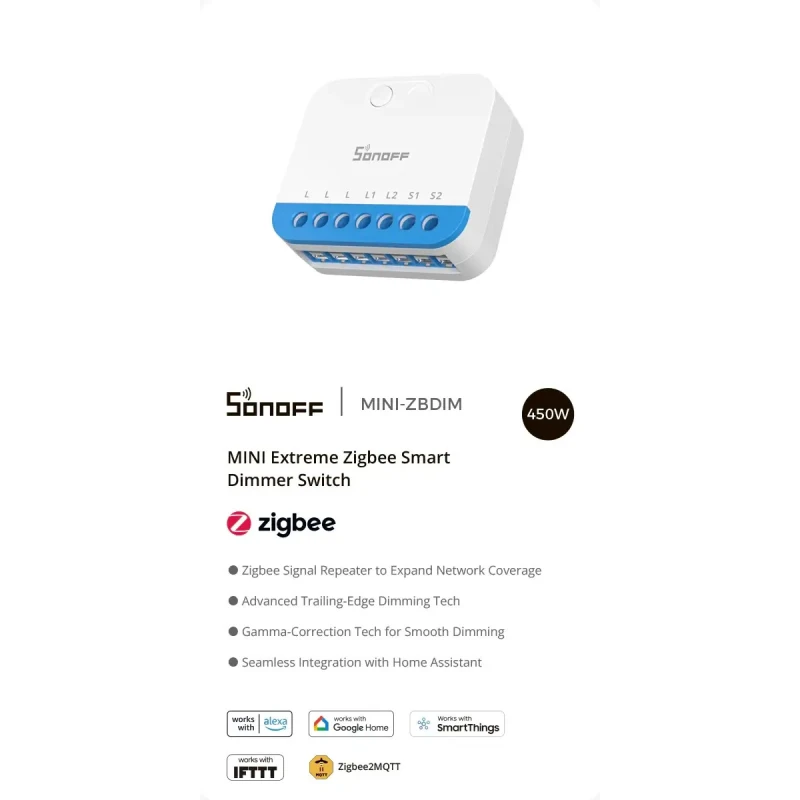

- Model: MINI-ZBDIM (MINI Extreme series)
- Wireless: Zigbee 3.0
- Rated voltage: 220–240 V~
- Rated frequency: 50 Hz
- Max load (current): 2 A
- Supported loads: dimmable LED up to 200 VA; incandescent up to 400 W; halogen up to 400 W; dimmable electronic transformers up to 200 W
- Dimming method: trailing-edge dimming, brightness calibration (manual/automatic)
- Power monitoring: yes (real-time consumption data)
- Overheat protection: yes (TC temperature sensing, output cut-off)
- External switches: supports multiple types (momentary/rocker; two control points)
- Dimensions: 45 × 39.4 × 16.8 mm
- Net weight: 24.5 g
- Operating temperature: -10 °C to +40 °C
- Housing material: PC
Note: 220–240 V only. Do not exceed or go below voltage limits. For the best dimming curve, perform brightness calibration before regular use.
