Upgrade Your Smart Home Setup
The SONOFF ZBMINIL2 Extreme ZigBee Smart Switch is an innovative solution designed for those who want to upgrade their smart home setup without needing a neutral wire.
This compact switch utilizes Zigbee 3.0 technology, allowing for seamless integration with various smart home hubs such as Amazon Alexa and Google Assistant (via a Zigbee hub), enabling you to effortlessly control your devices from anywhere.
Thanks to its ultra-compact design, the ZBMINIL2 is 40% smaller than previous models, making it easy to fit into the smallest EU-type mounting boxes.
This switch supports both rocker and momentary external switches, providing flexibility in how you control your devices. The installation process is straightforward, making it accessible to users with minimal electrical experience.
Key Features:
- No Neutral Wire Required: Simplifies installation and is suitable for various setups.
- Ultra-Compact Size: Easily fits into cramped spaces, making it ideal for small junction boxes.
- Zigbee Compatibility: Works seamlessly with Zigbee hubs, ensuring reliable connectivity.
- Two-Way Control: Allows control from multiple locations, perfect for staircase lighting.
- Smart Automation: Create timers and scenes for enhanced convenience and energy efficiency.
User Experience and Integration
The ZBMINIL2 from SONOFF is designed for easy integration into existing smart home systems. Users can connect the switch to compatible Zigbee hubs, such as the SONOFF Zigbee Bridge or Amazon Echo devices. Once connected, you can control your devices via the eWeLink app or with voice commands using Amazon Alexa or Google Assistant.
Installation Instructions
Installing the SONOFF ZBMINIL2 is straightforward and can be completed in a few simple steps:
- Power Off: Ensure the power is turned off at the circuit breaker before starting the installation.
- Remove Existing Switch: Carefully remove the faceplate and the existing switch from the wall.

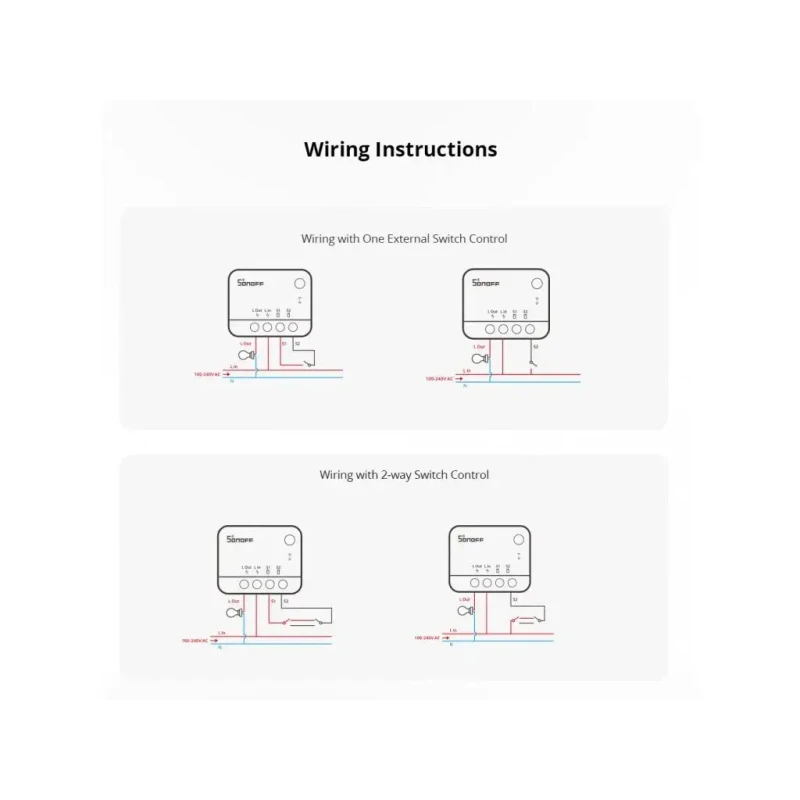

- Connect Wires: Connect the live wire to the L terminal and the output wire to the L Out terminal of the ZBMINIL2.
- Select Switch Type: Choose between rocker or momentary switch mode by triple-pressing the button on the top of the device.
- Secure in Place: Safely place the ZBMINIL2 into the mounting box and attach the faceplate.
- Restore Power: Turn the power back on at the circuit breaker and configure the switch using the eWeLink app.

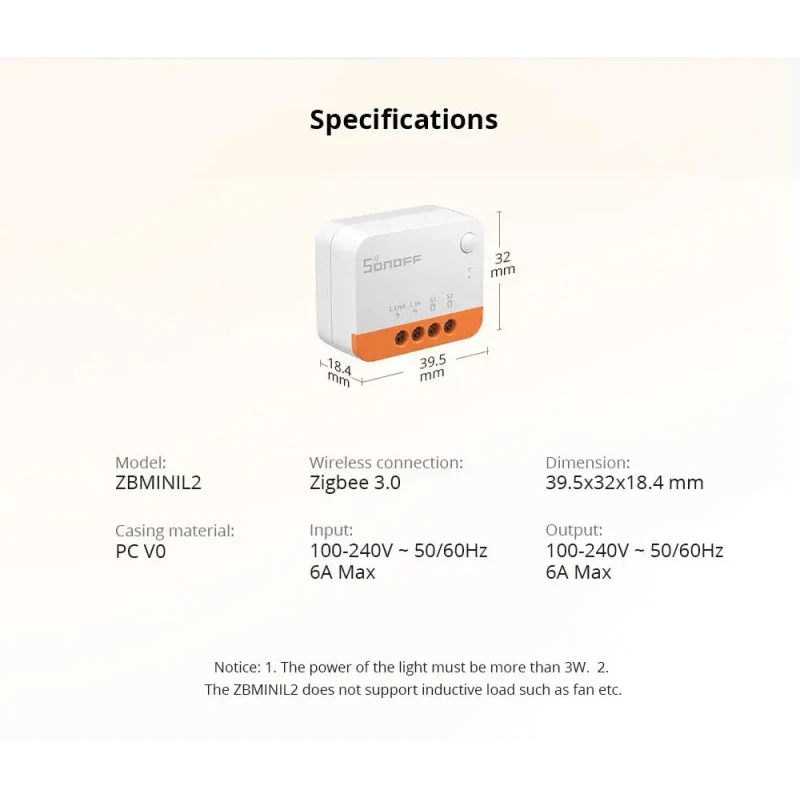

Technical Specifications of the SONOFF ZBMINIL2 Extreme:
- Model: ZBMINIL2
- Input Voltage: 100-240V AC, 50/60Hz
- Maximum Load: 6A
- Minimum Light Power must be more than 3W
- Does not support dimmable LED lights/bulbs and inductive loads like fans, etc.
- Output Voltage: 100-240V AC, 50/60Hz
- Material: PC V0 (Fireproof)
- Dimensions: 39.5 mm x 32 mm x 18.4 mm
- Zigbee Protocol: Zigbee 3.0
- Weight: Approximately 64g
Conclusion:
The SONOFF ZBMINIL2 Extreme ZigBee Smart Switch is a versatile addition to any smart home setup. Its compact design, ease of installation without a neutral wire, and compatibility with major smart home platforms make it an excellent choice for those looking to modernize their lighting control systems.
Experience enhanced convenience and control with the SONOFF ZBMINIL2 today!
