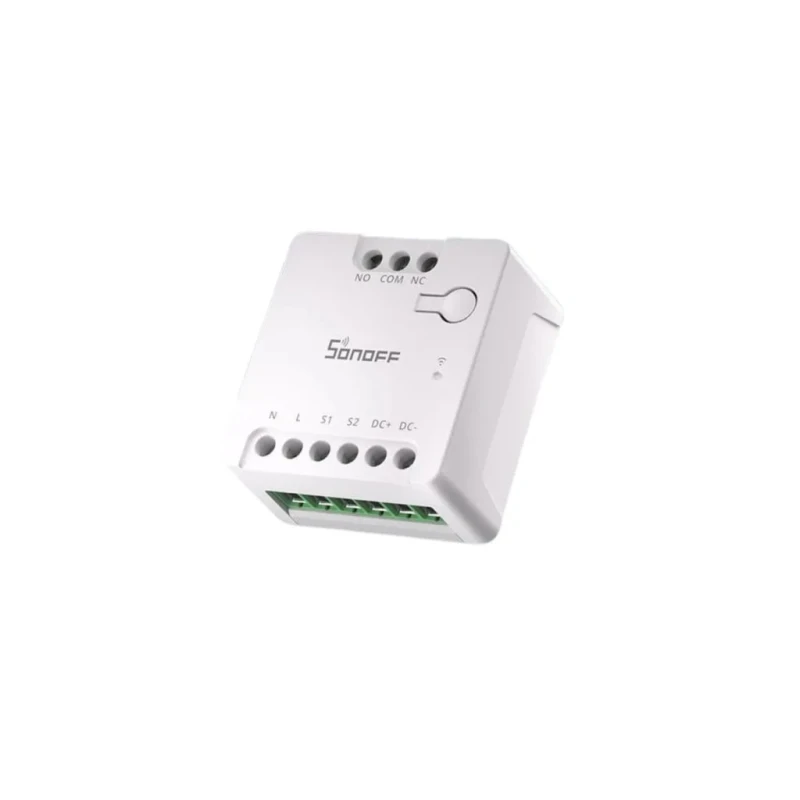

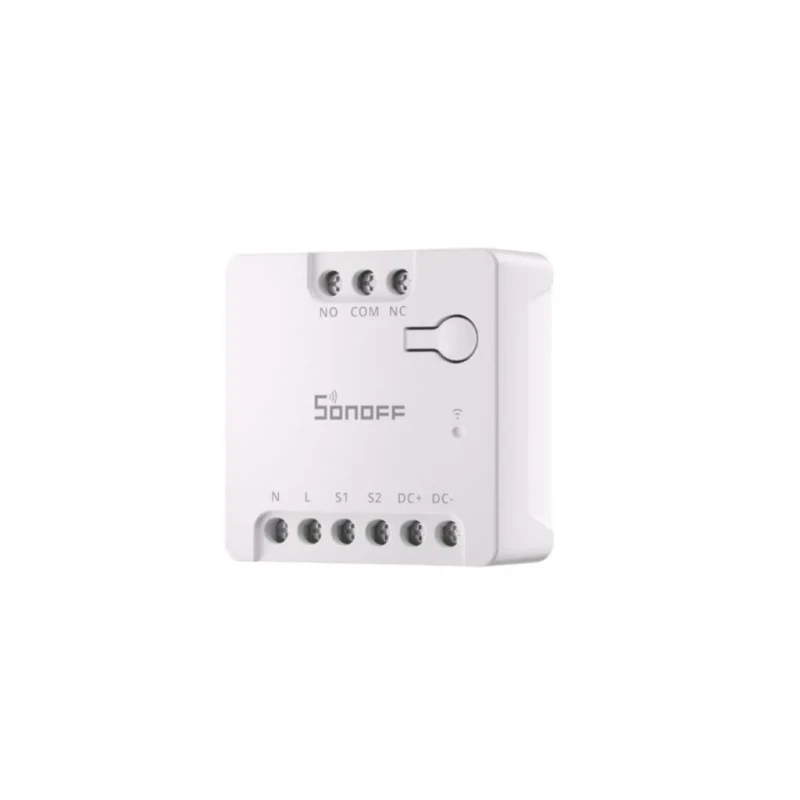

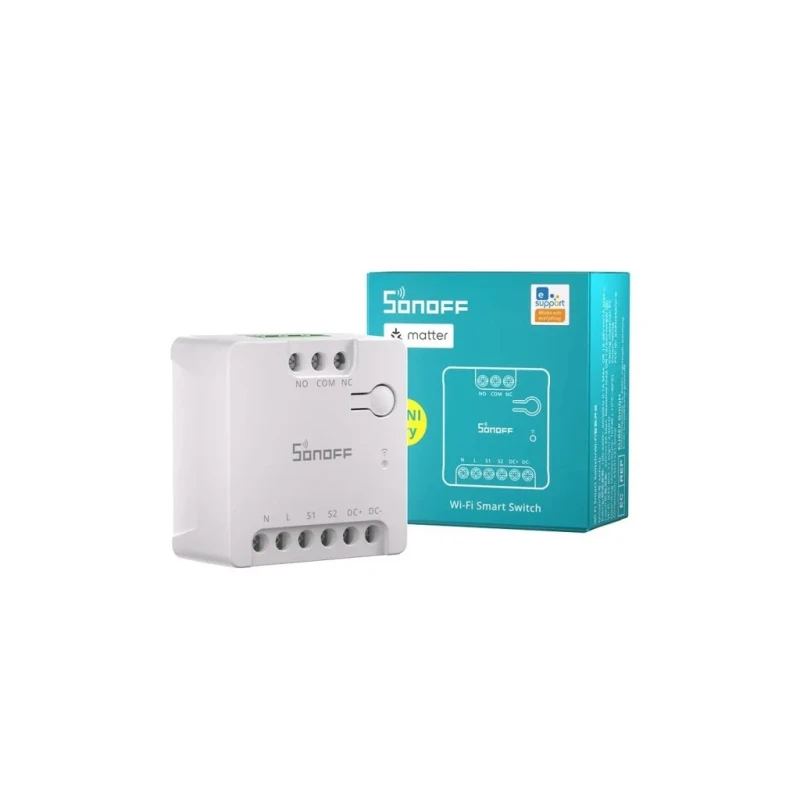

SONOFF MINI Dry Wi-Fi Smart Switch | MINI-D
Supports AC and DC Power Supply
SONOFF MINI-D is a versatile and compact Wi-Fi smart switch designed to make your home smarter. It supports both AC and DC power supply, allowing for flexible installation in various environments.
Matter Compatibility: The MINI-D is Matter certified, enabling seamless integration with Matter-enabled platforms such as Alexa, Apple Home, Google Home, and Home Assistant. It allows you to collaborate with other Matter brand devices to create a unified smart home setup.
Key Features:
- Dry Contact Support: Ideal for controlling devices with dry contact input, such as motors, garage doors, and gates.

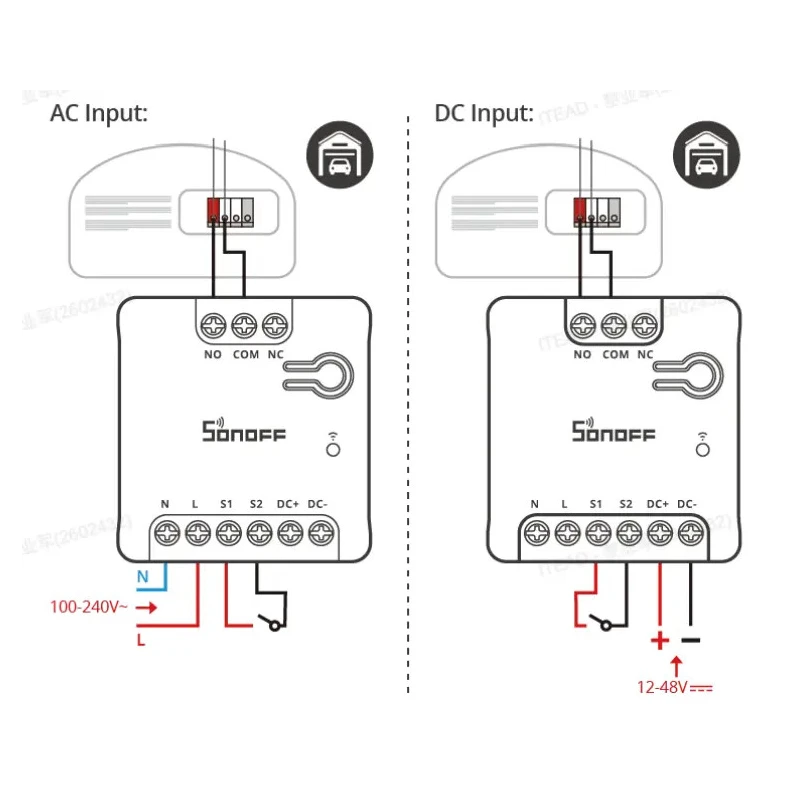

- AC/DC Power Supply: Compatible with both AC and DC power sources.
- DC Low-Voltage Motor Power: Specifically designed to control low-voltage solenoid valves/motors up to 8W, making it ideal for DC low-voltage systems.
- Contactor Control: When integrated with a contactor, the low-voltage circuit can safely and effectively control high-voltage systems without direct user intervention. It increases safety, reduces power consumption, and provides precise control over larger loads.
Smart Home Integration:
The MINI-D transforms existing electrical appliances, such as garage doors and boilers, into smart devices. Control your garage door from anywhere using the app on your phone or create a thermostat automation system to optimize comfort and energy efficiency. Customize smart schedules according to your habits and integrate them with other smart home devices, like the SONOFF Zigbee thermostatic radiator valve head, to reduce bills and create a more comfortable living environment.
Safety and Efficiency:
With a relay rated for a 2A output current, the MINI-D ensures safe and effective control of high-voltage systems when used with a contactor. The dry contact (voltage-free contact) function acts as a bridge to transmit the signal, ensuring that the power supplied to the module is isolated from the switched load, thereby preventing electrical faults and enhancing safety.
Specifications of the SONOFF MINI Dry Wi-Fi Smart Switch:
- Model: MINI-D
- Weight: 41.5 g
- Dimensions: 45 × 48 × 24 mm
- Wireless Connection: Wi-Fi: IEEE 802.11 b/g/n 2.4GHz
- Power Supply: 100-240V~50/60Hz 0.1A Max or 12-48V⎓1A Max μ
- Max. Load: 24V/2A max. resistive load or 12/24V⎓8W motor load
- Housing Material: PC
