Longer Range and Stable Control

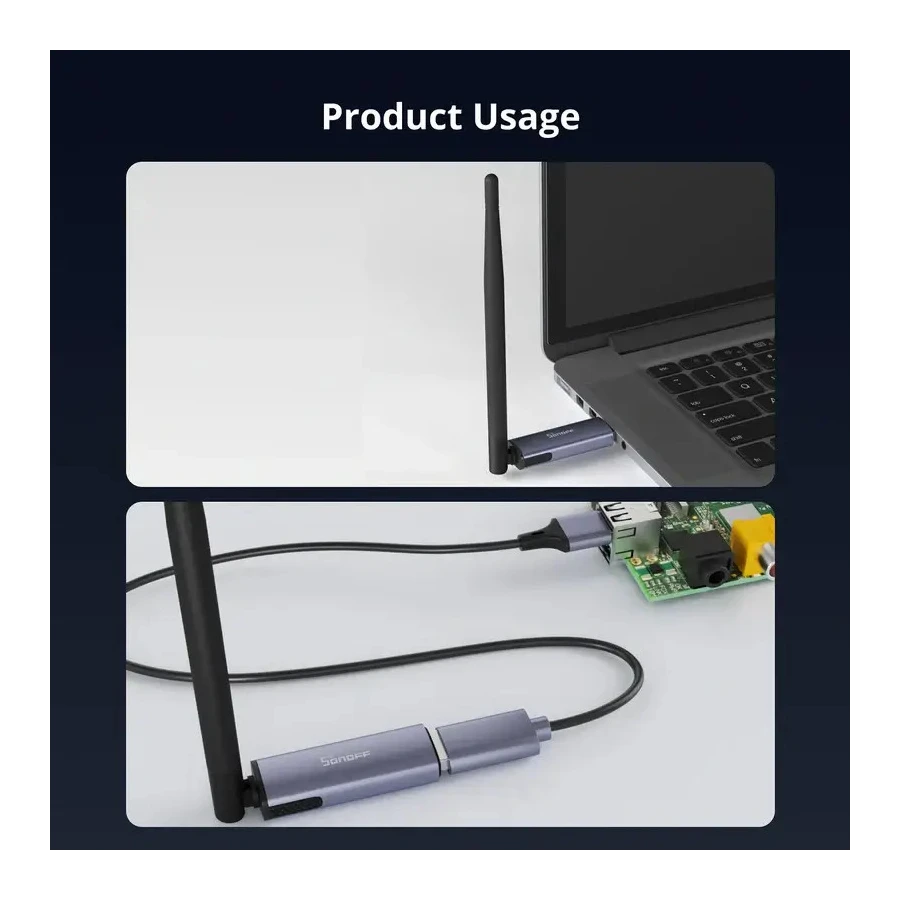

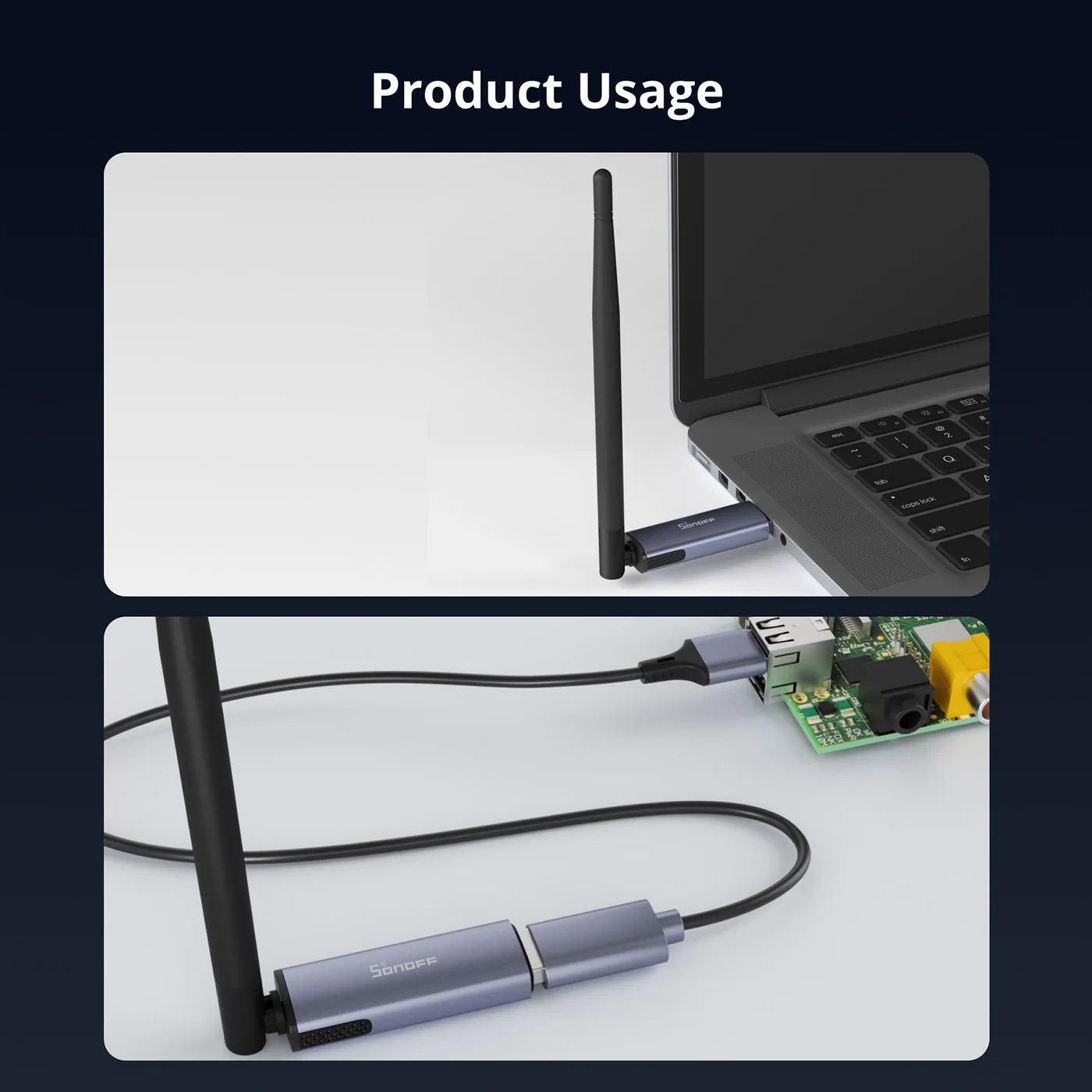

Turn a PC, Raspberry Pi, or server into a powerful Zigbee/Thread gateway with the SONOFF Dongle Plus MG24 adapter. Built on the high-performance EFR32MG24, it delivers faster automations, longer range, and rock-solid control of multi-brand devices — ideal for open-source enthusiasts and pro installers alike.
Why You’ll Love It
- MG24 Performance Leap: EFR32MG24 with 1536 KB Flash and 256 KB RAM ensures snappy automations and quick responses from sub-devices.
- Stronger, Wider Coverage: External antenna with 3 dBi gain (up to 4.5 dBi with correct angling/channel) reaches up to 200 m in open space.
- Open-Source Ready: Works seamlessly with Home Assistant, Zigbee2MQTT, openHAB, and others — for local, private automations.
- Flash in Minutes: Easily change roles and firmware using the Dongle Flasher Web Tool or the Add-on.
- Cleaner Signal, Fewer Drops: The included 1 m USB extension cable allows you to place the dongle away from interference for higher stability.
- Built to Last: Compact aluminum alloy body with a modern look (24-hour salt-spray tested).

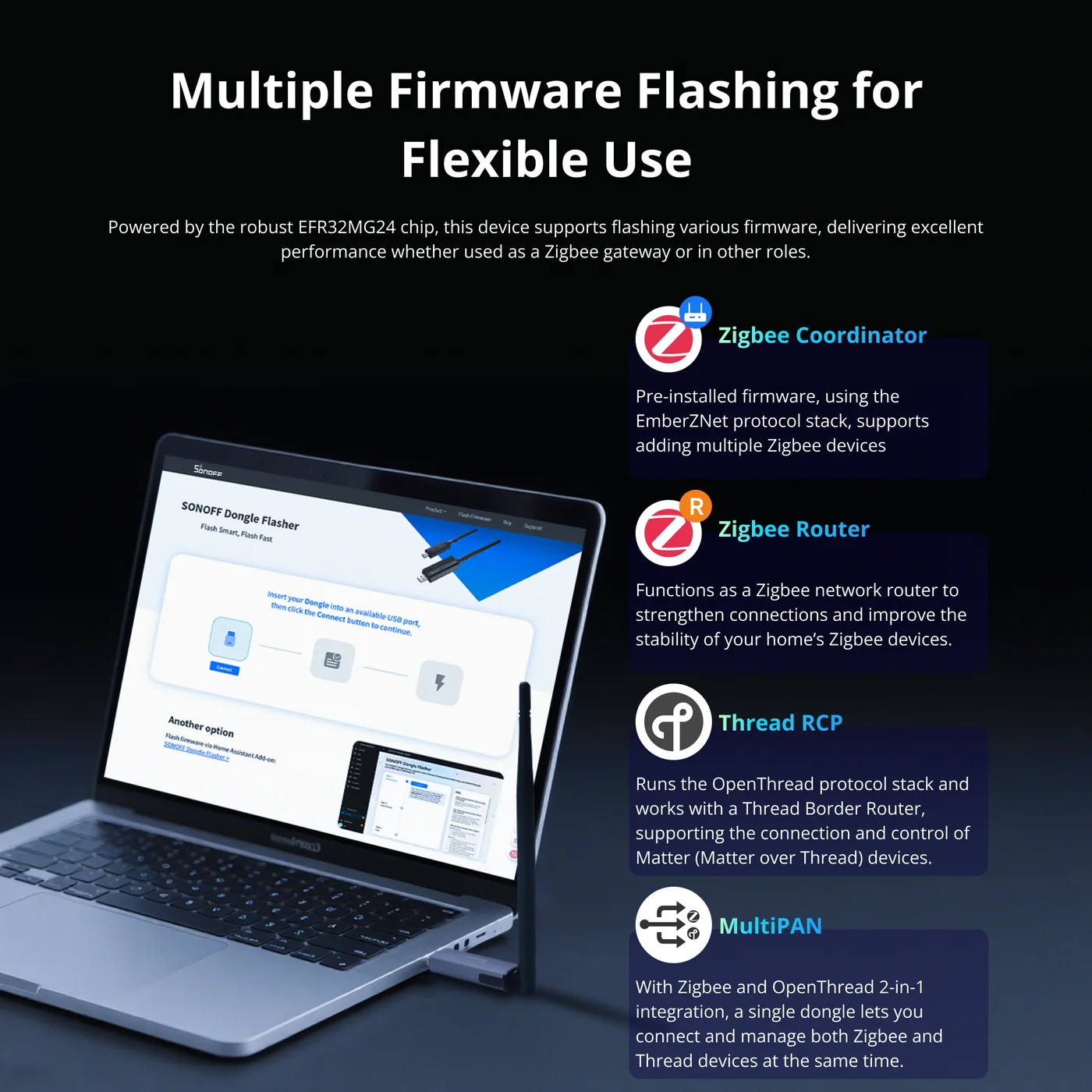

Flexible Roles with Flashable Firmware
- Zigbee Coordinator (EmberZNet/EZSP): Locally add and manage large fleets of Zigbee 3.0 devices.
- Zigbee Router: Strengthen the mesh, extend coverage, and stabilize distant end devices.
- OpenThread RCP: In conjunction with a Thread Border Router, connect and control Matter (via Thread) devices.
- MultiPAN RCP (Zigbee + Thread 2-in-1): Coordination and monitoring of both networks with a single dongle.
Role switching is fast — upload the desired firmware via the official tools above and you are ready to go.
Designed for Real-World Installations
- Omni-Adjustable Antenna: Angle it towards receiving devices for a more stable connection.
- Electromagnetic Hygiene: The extension cable separates the dongle from USB 3.0 ports and metal enclosures, minimizing 2.4 GHz band interference.
- Core Adapter for Mixed Brands: Unify devices from multiple manufacturers under one local, private platform.

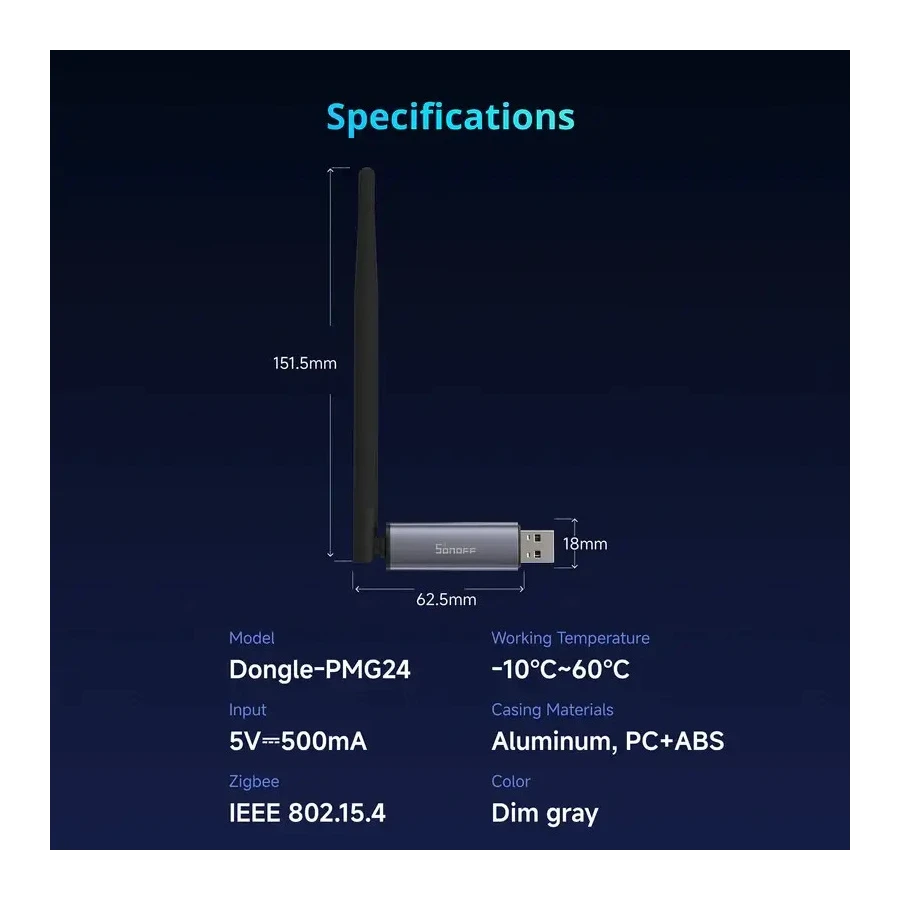

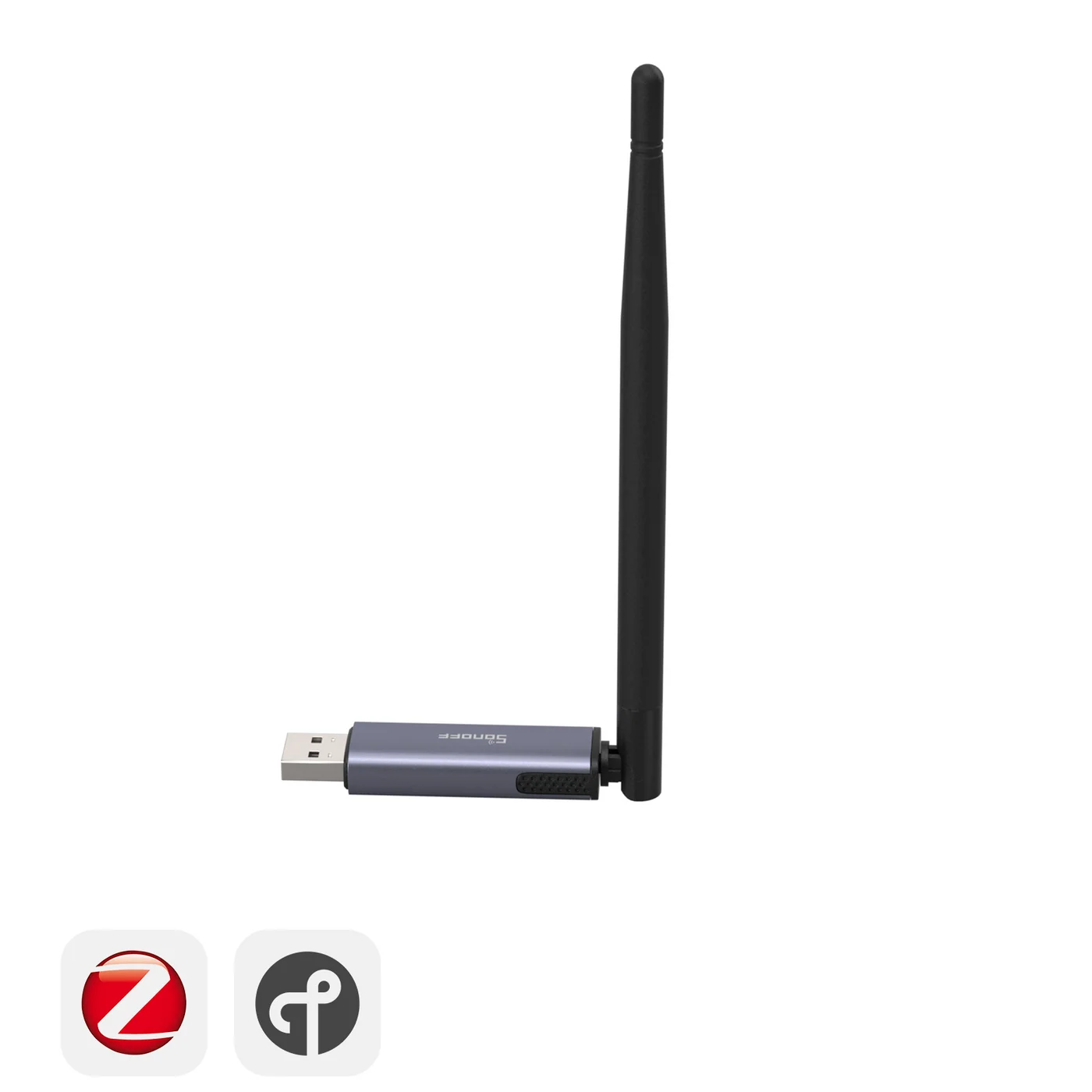

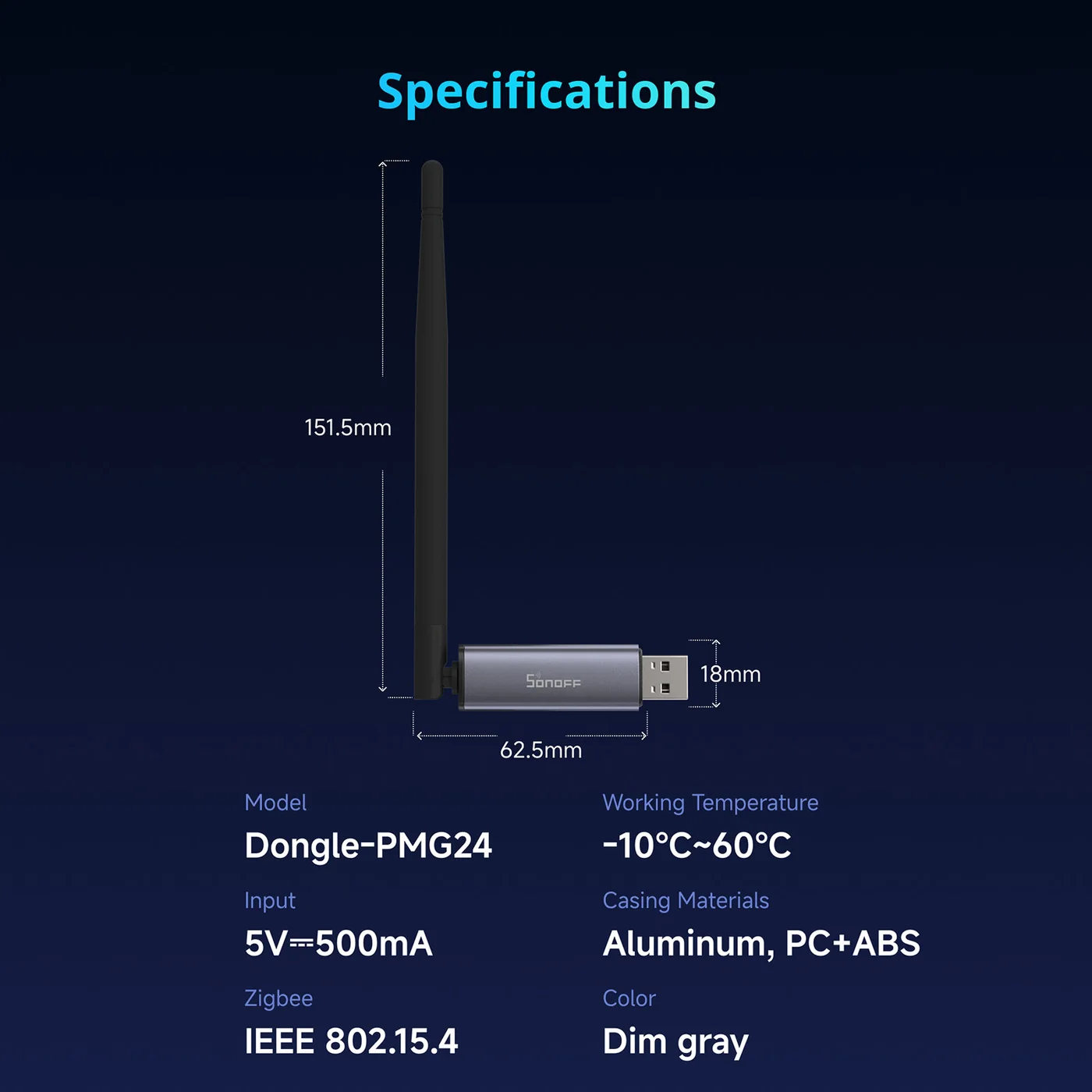

SONOFF MG24 Technical Specifications:
- Model: Dongle-PMG24
- Zigbee/Thread SoC: EFR32MG24 (1536 KB Flash, 256 KB RAM)
- Input: 5 V ⎓ 500 mA
- Standby Power Consumption: ~40 mW
- RF Frequency: 2.4 GHz
- Standards: IEEE 802.15.4 / Zigbee 3.0; OpenThread (via firmware)
- Antenna Gain: 3 dBi (optimizable up to 4.5 dBi)
- Signal Range: up to 200 m line-of-sight (environment dependent)
- Signal Strength/Output: Max 20 dBi + antenna gain 3 dBi (per firmware/hardware)
- Operating Temperature/Humidity: −10 °C to 60 °C; 5 %–95 % RH
- Supported OS: Windows, Ubuntu, Raspberry Pi OS/Raspbian, Docker
- Dimensions: 10 mm × 18 mm × 214 mm
- Casing: Aluminum Alloy, resistant to corrosion and pressure

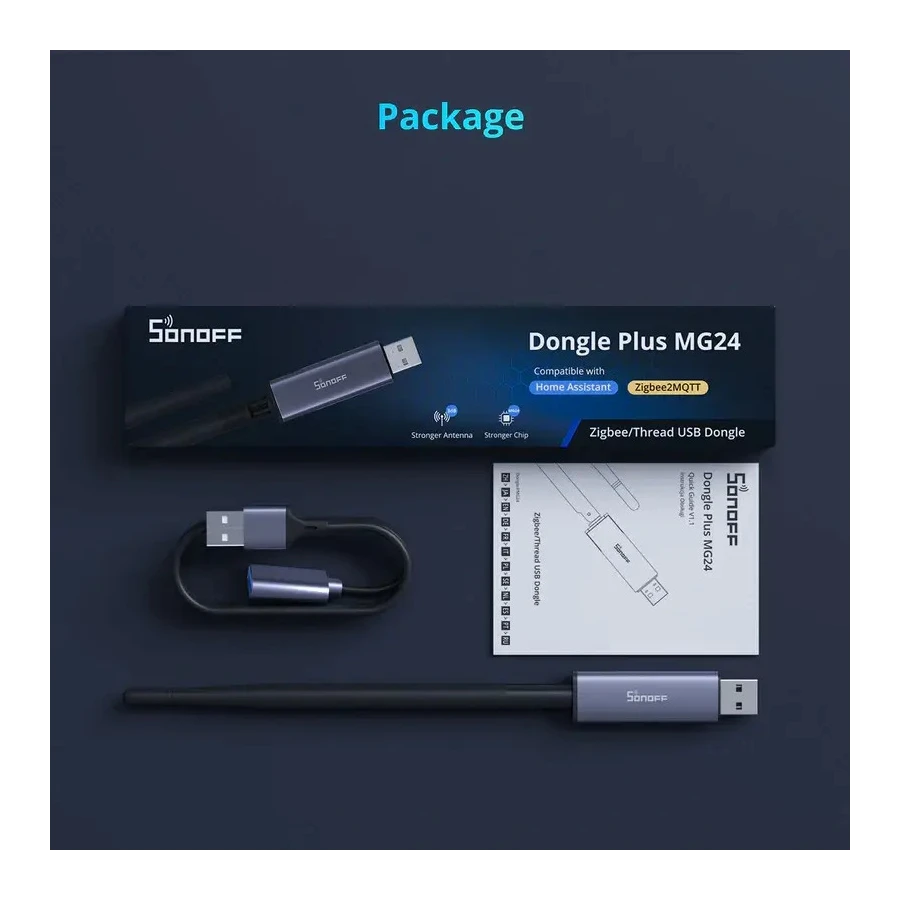

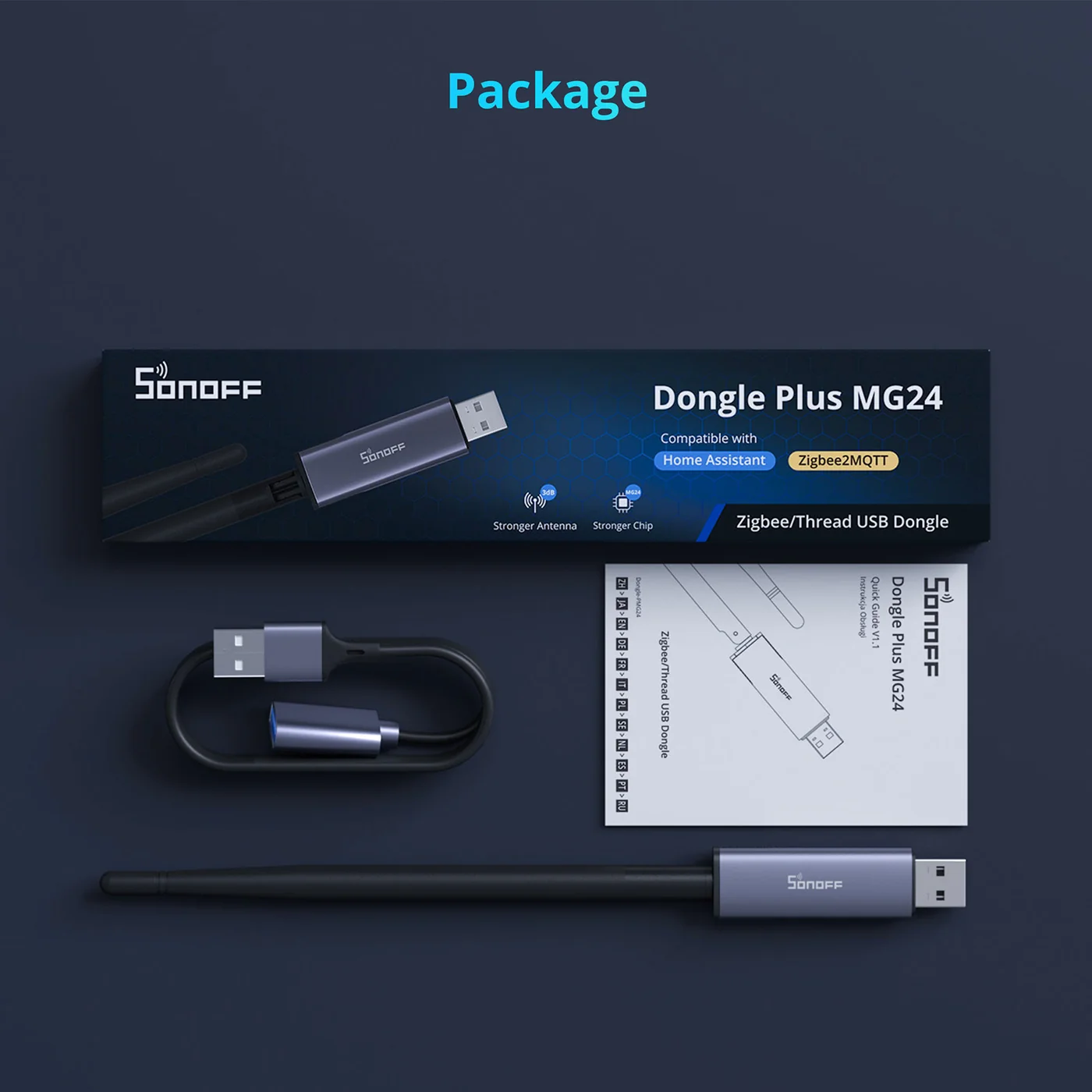

Package Contents:
- SONOFF Dongle Plus MG24
- 1 m USB extension cable
- Specifications & quick guide
Setup and Resources:
- Quick Firmware Flashing: Dongle Flasher Web Tool or Add-on (role switching in about a minute).
- Manuals and Guides: dongle.sonoff.tech
Important Information:
- Range and throughput depend on the environment, antenna orientation, and noise level in the band.
- Matter via Thread requires a compatible Thread Border Router (sold separately).
- MultiPAN and role behaviour depend on the specific firmware you upload.
