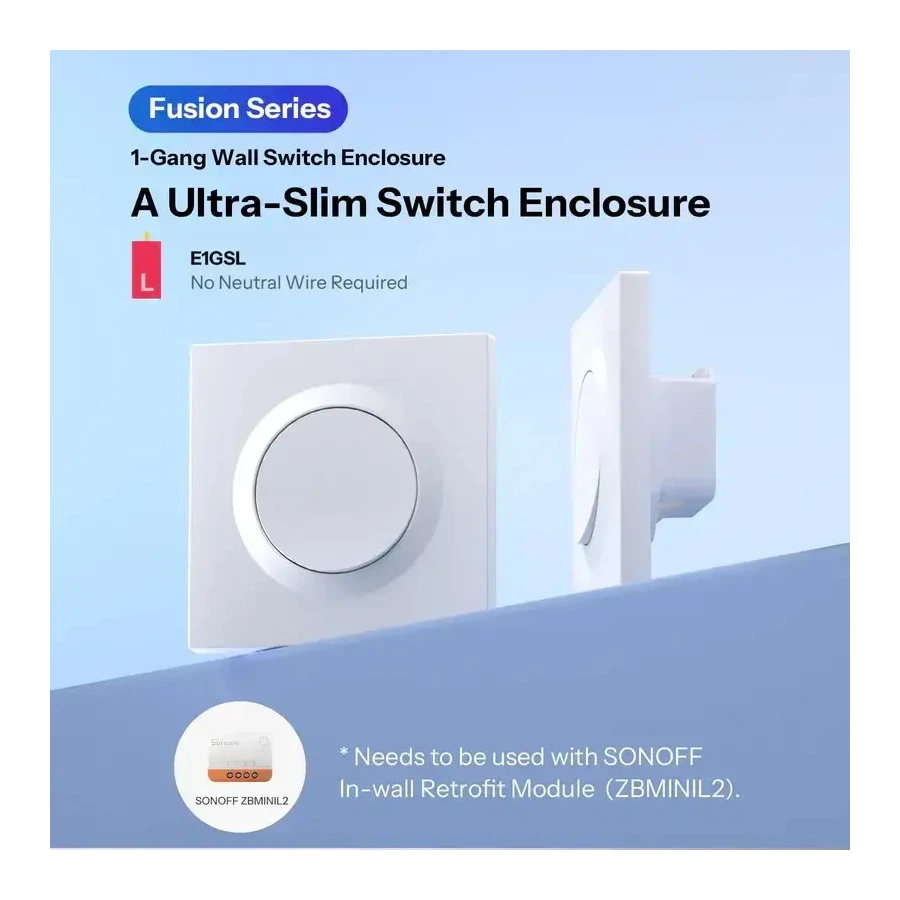

SONOFF E1GSL Mounting Enclosure
Give your SONOFF ZBMINIL2 a clean, modern face with the E1GSL. This 1-gang accessory cover combines a slim rear profile with a premium button feel for fast installation and reliable control in EU and 86-type junction boxes.

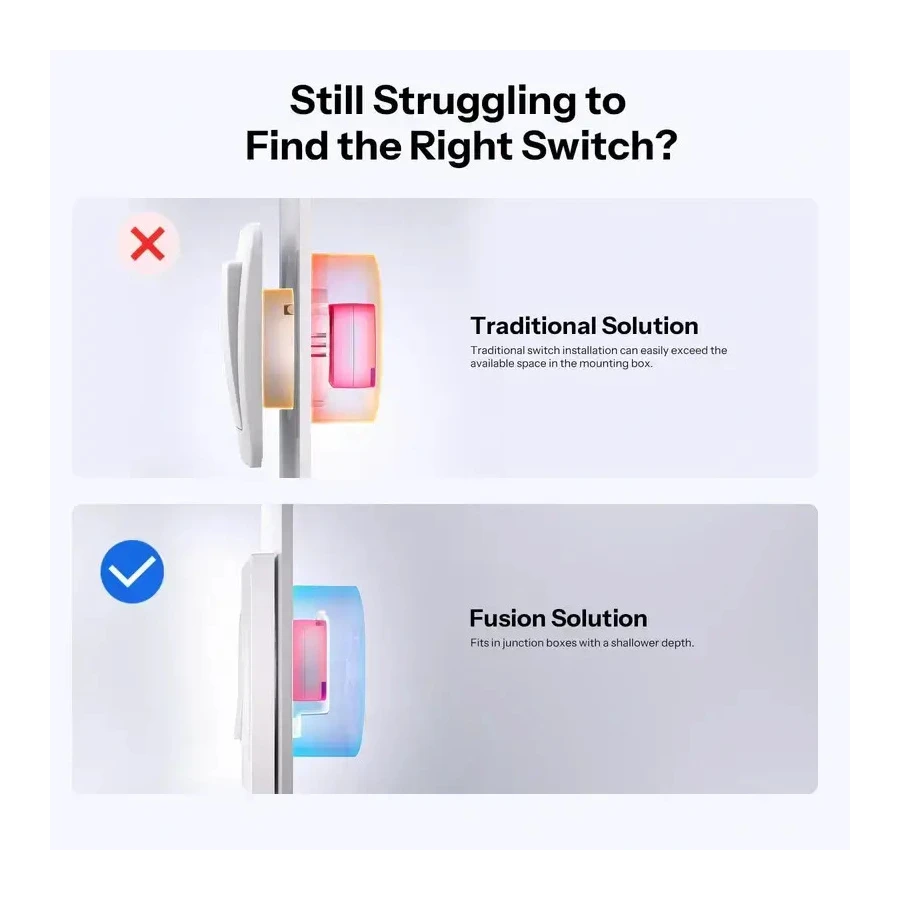

Designed for Tight Spaces
Traditional retrofits often exceed the available space in the mounting box. The E1GSL’s compact rear section solves this with suitability for standard 86-type boxes and $\emptyset$60 mm European round boxes — including many shallow ones — resulting in a clean look and easy installation.

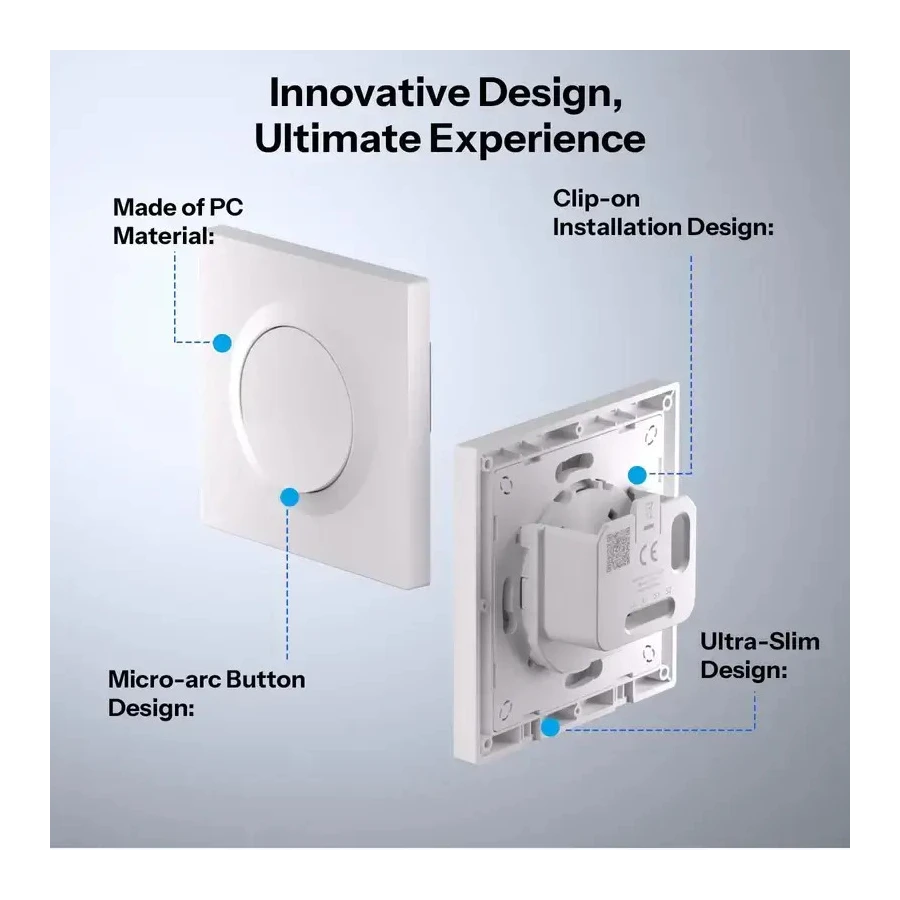

Product Features:
- Self-extinguishing PC enclosure: Scratch-resistant, dimensionally stable, ready for long-term use.
- Clip-on installation: The innovative clip significantly speeds up wiring, secures firmly, and minimizes errors.
- Ultra-slim design: Rear profile <23 mm for easy fitting even into shallow boxes.
- Micro-arc button: Natural finger angle and precise, pleasant tactile feedback.
- No neutral wire: The E1GSL is designed for the ZBMINIL2 retrofit module from SONOFF.
Designed for SONOFF Retrofit Modules:
The E1GSL serves as the physical switch for your flush-mounted module. Combined with the ZBMINIL2, it creates an elegant and reliable control point, while keeping the wiring neat and accessible.
Technical Specifications:
- Model: E1GSL (Fusion Series, 1-gang)
- Material and Color: PC (self-extinguishing), white
- Rear Profile: <23 mm
- Dimensions: 86 × 86 × 35.8 mm
- Weight: 57.5 g
- Button Type: Micro-arc design for ergonomic press

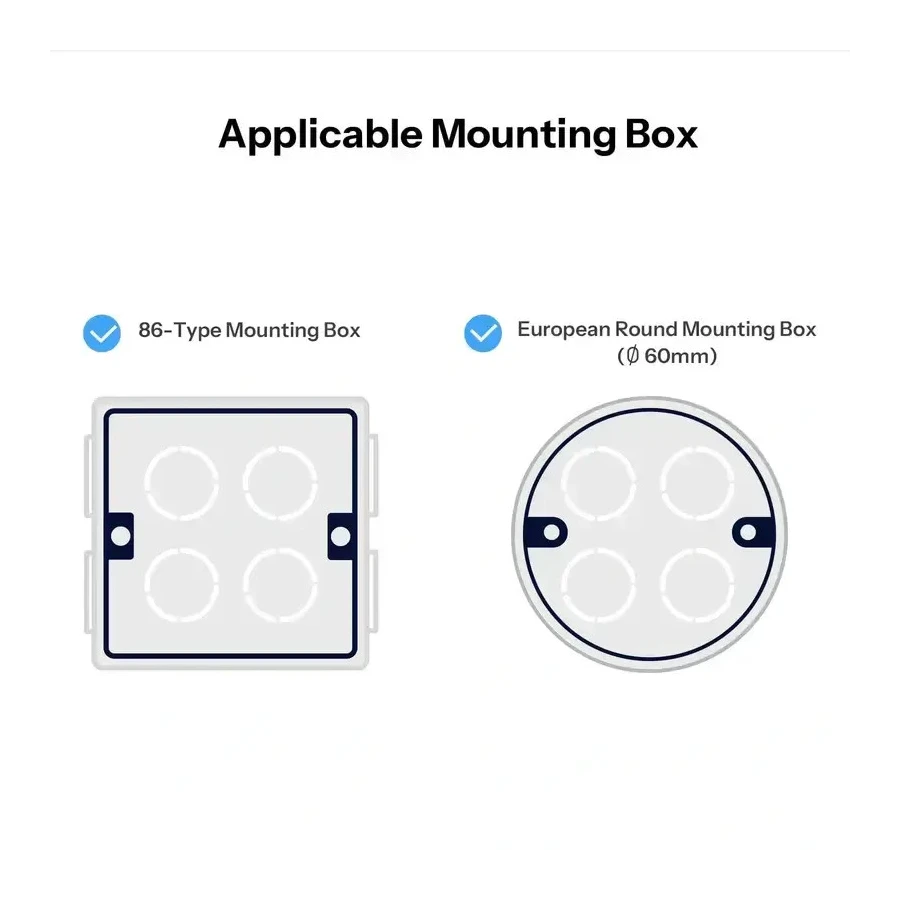

- Mounting Boxes: 86-type rectangular; $\emptyset$60 mm EU round (including many shallow ones)
- Compatible Product: SONOFF ZBMINIL2
- Wiring Requirement: No neutral wire (with compatible retrofit module)

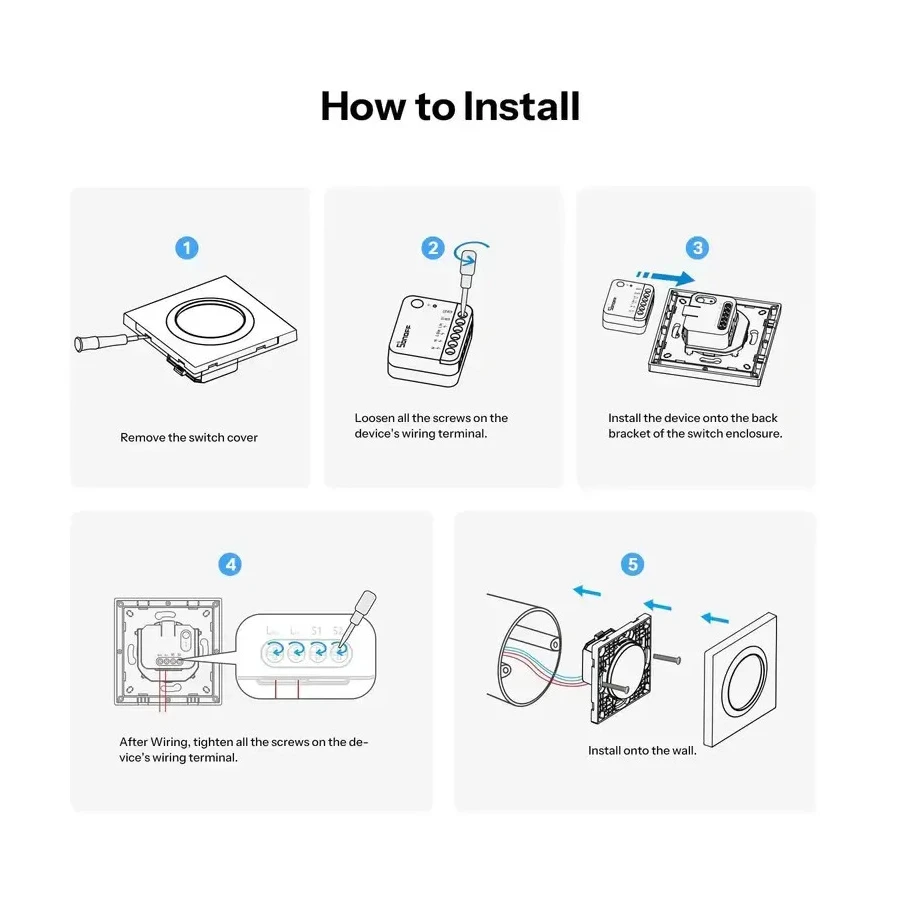

Installation:
- Turn off power: Switch off the electricity supply before wiring.
- Prepare the module: Loosen the terminal screws on the SONOFF flush-mounted module.
- Wire according to diagram: Connect the wires according to the diagram for ZBMINIL2.
- Secure the terminals: After wiring, tighten the screws firmly.
- Clip and mount: Insert the enclosure using the clip-mechanism and finish with the faceplate.
Notes:
- Loosen all terminal screws on the module before wiring; tighten them firmly after connecting the wires.
- Adhere to local electrical standards; if uncertain, contact a qualified electrician.
