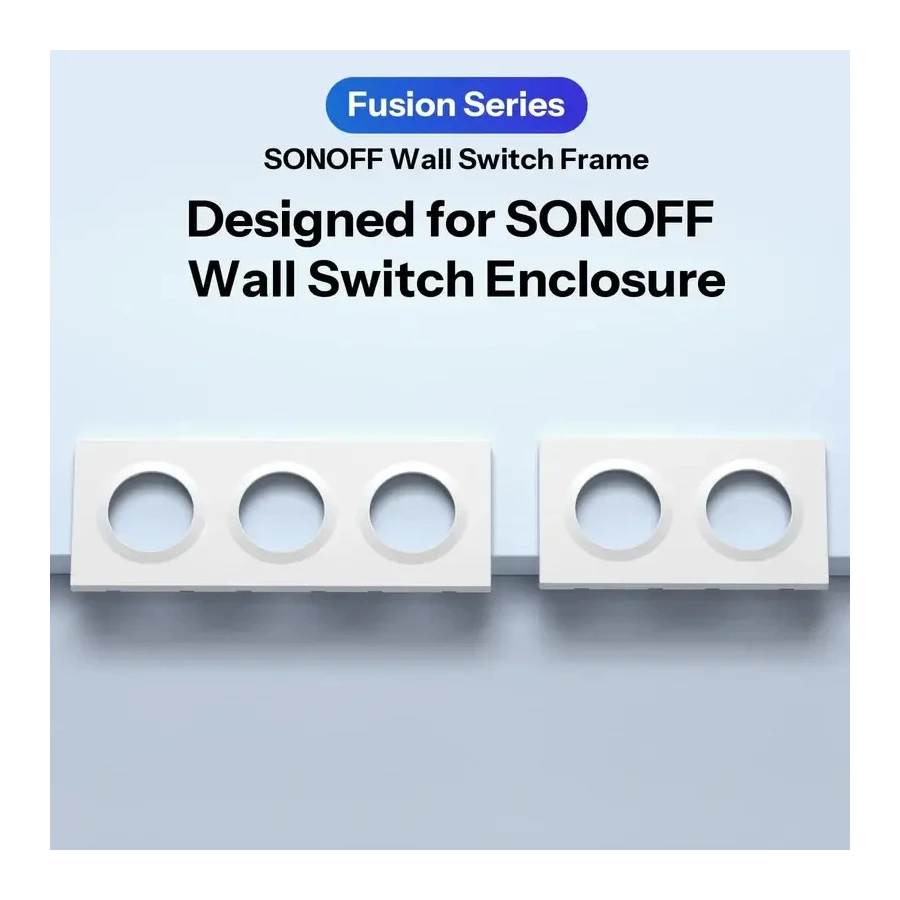

Designed for SONOFF Enclosures
Give two SONOFF wall switch enclosures a perfectly aligned, minimalist look with the Orb 2-Gang Frame EF2G. This accessory frame is designed for standard 2-gang EU boxes, speeding up multi-module installations and enabling DIY sensor integration for a clean, professional finish.

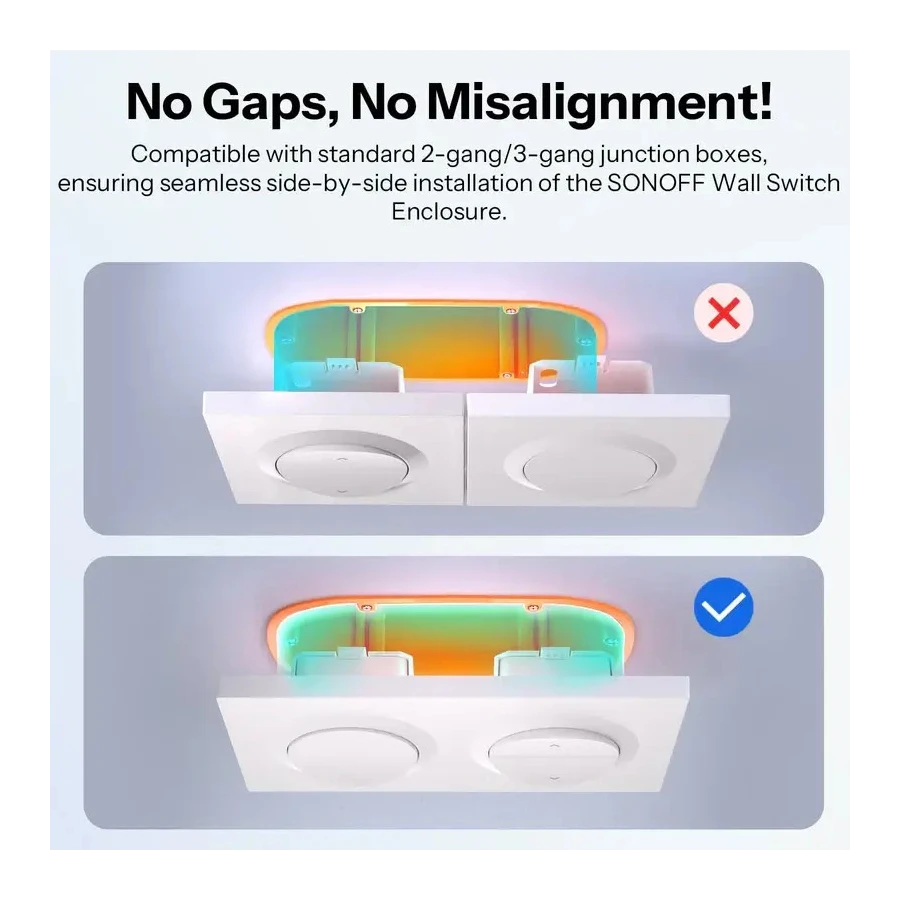

The EF2G is optimized for the SONOFF Fusion Series enclosures, ensuring a firm, gap-free fit in a 2-gang box. It eliminates the misalignment typical of traditional multi-gang mounts and keeps wiring tidy.
SONOFF EF2G Wall Switch Frame
- Precise fit in 2-gang boxes: Houses two enclosures side-by-side with perfect geometry — no squeezing, twisting, or uneven gaps.
- Seamless, slim bezel: Clean lines underscore a modern interior, allowing the controls to stand out.

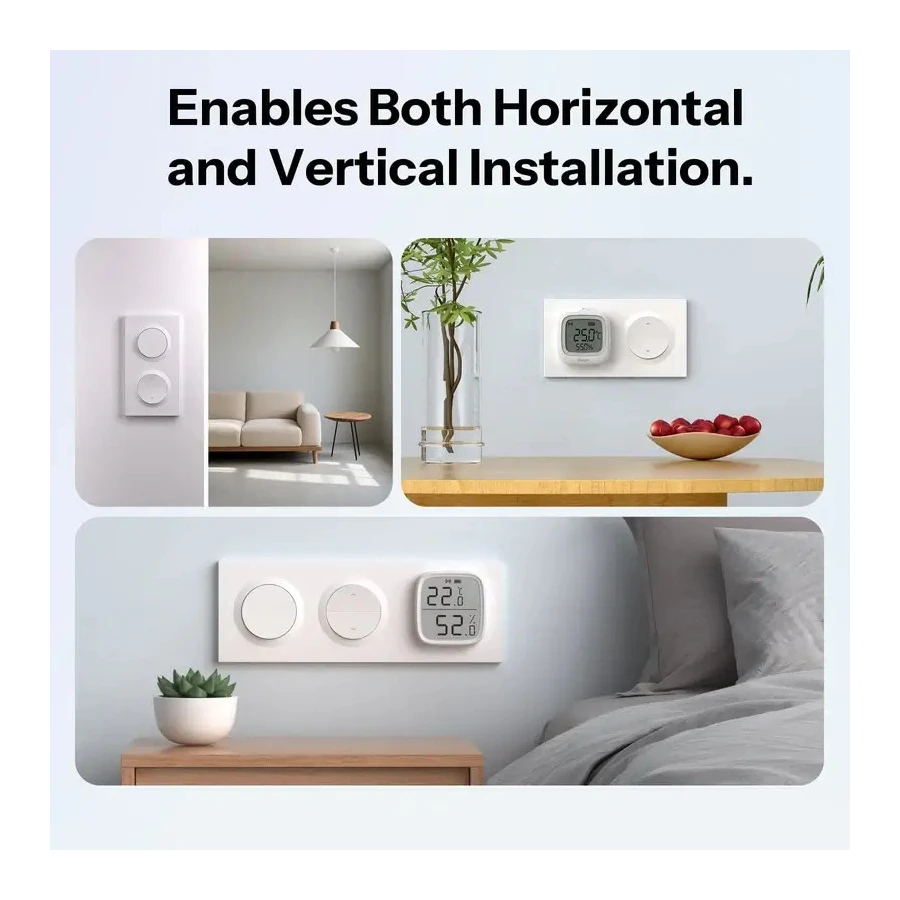

- Horizontal and vertical: Mount in any orientation based on room layout.
- DIY smart hub: Use SONOFF’s 3D print files to add a motion sensor, temperature and humidity sensor, or a wireless button directly into the frame.
- Open accessory ecosystem: Works with community 3D-printed holders, even for other brands’ sockets.
DIY and Sensor Extensions (Optional)
- 3D-printed accessories: Holders for SNZB-01P (wireless switch), SNZB-02P / SNZB-02D / SNZB-02WD (temperature & humidity), and SNZB-03P (motion) create a compact wall control center.
- Note on magnet: Some holders may require a small magnet for optimal attachment.
Technical Specifications SONOFF EF2G:
- Model: EF2G (Orb 2-Gang Wall Switch Frame)
- Compatible Enclosures: Orb-MW1, Orb-ZBW1L, Orb-RBS, E1GS, E1GSL

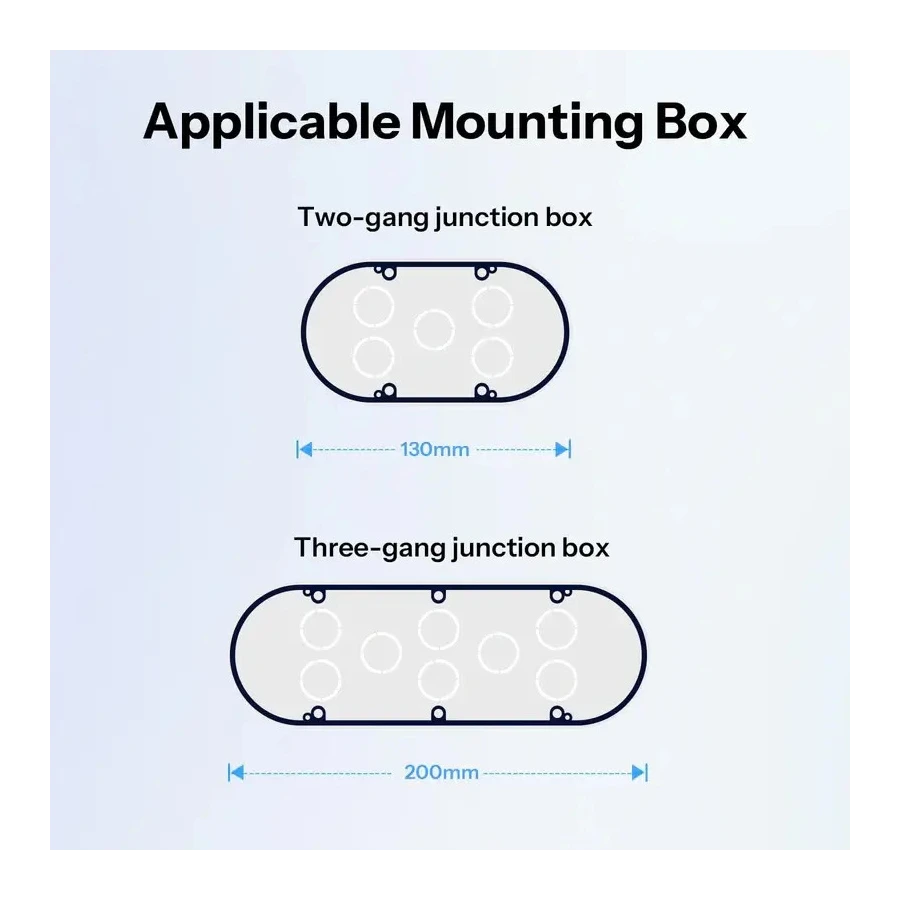

- Installation Box: Standard 2-gang box (EU)
- Orientation: Horizontal or vertical
- Material and Color: PC (durable, dimensionally stable), white

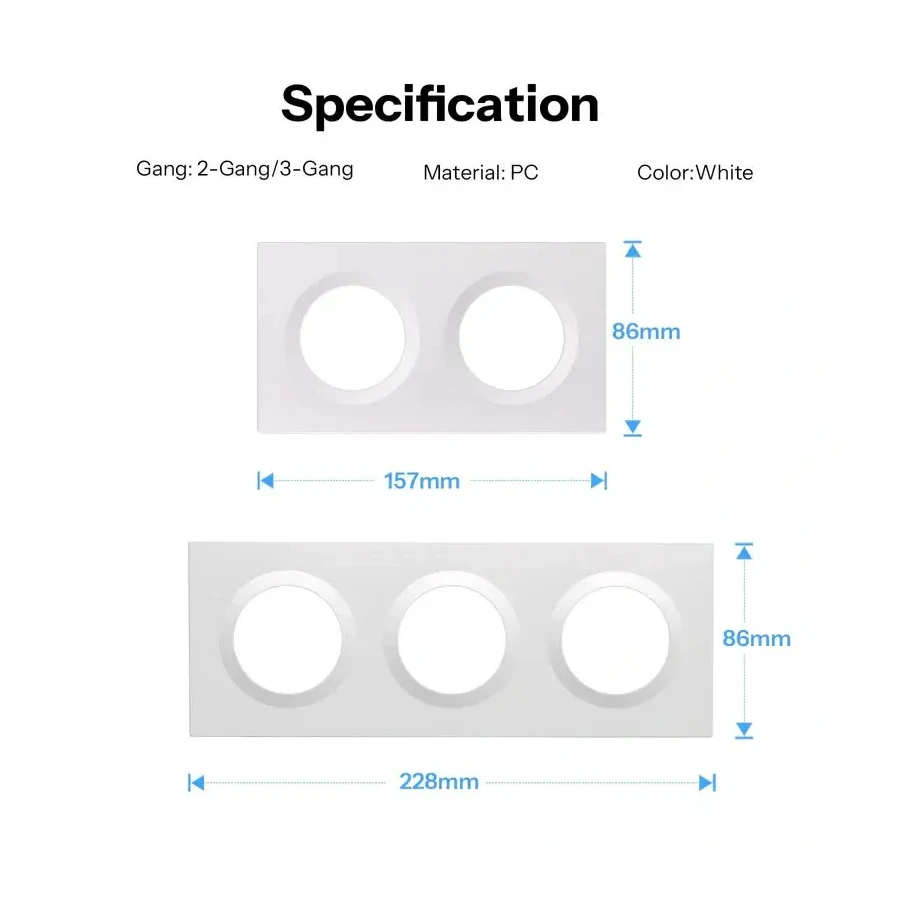

- Dimensions and Weight: 157 × 86 mm, 35 g
- Accessories: Supports SONOFF 3D-printed sensor extensions (files available from SONOFF)
Quick Installation Overview:
- Turn off power: Disconnect the circuit before working.
- Place the Enclosures: Position two SONOFF enclosures into the 2-gang installation box.
- Align the EF2G: Attach the frame to eliminate gaps and ensure flush alignment.
- Finish & Test: Secure the faceplates, restore power, and verify function.
Notes:
- When installing accessories, follow the instructions for the specific 3D holder; some may require a magnet.
- Always comply with local electrical codes; if in doubt, consult a qualified electrician.
