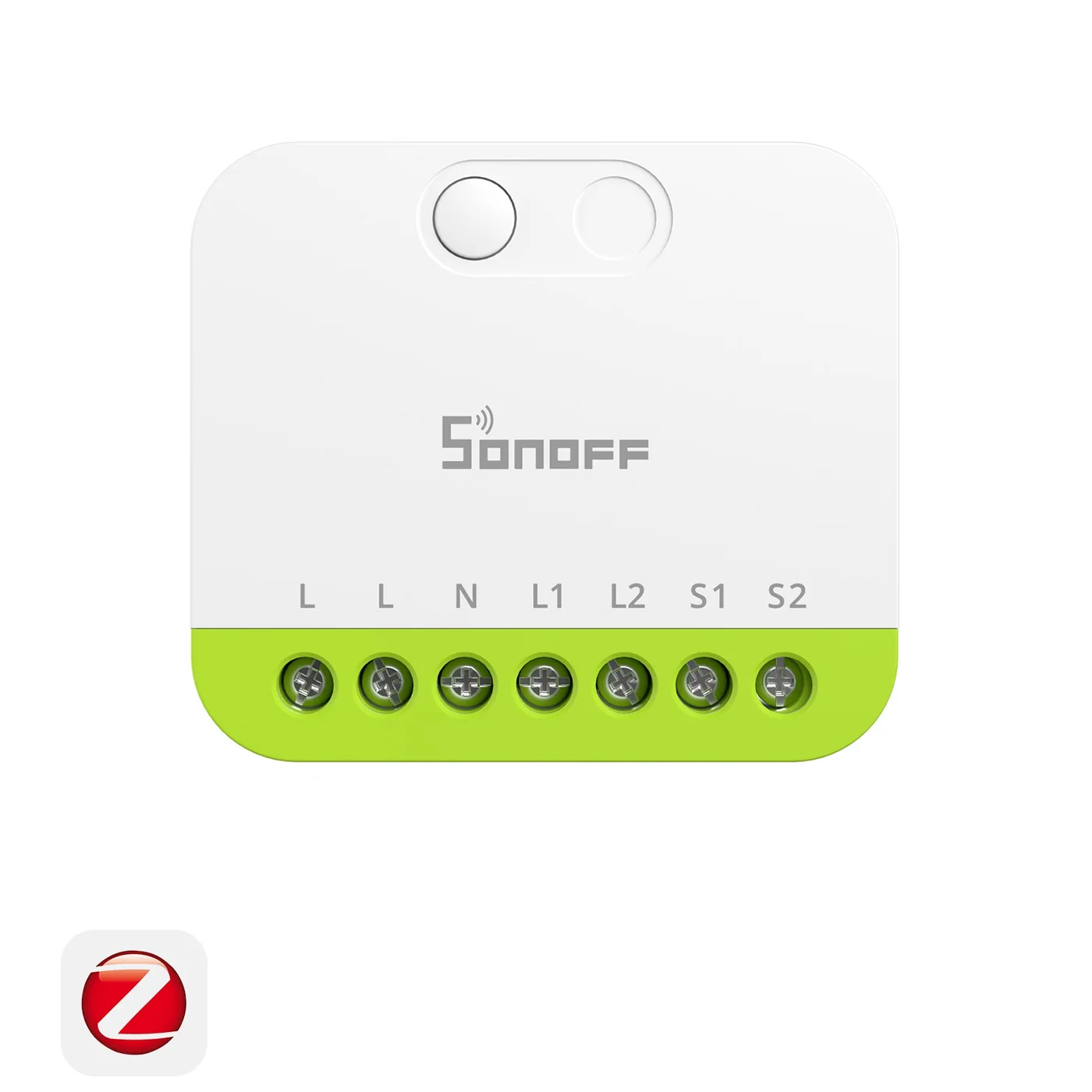

Smart Dual-Channel Module for Standard Junction Boxes
SONOFF MINI DUO 2-Gang Zigbee Smart Switch MINI-ZB2GS transforms two regular light or socket branches into a smart Zigbee 3.0 solution. Hidden in the installation box behind the switch, it brings control via the app, voice assistants, and automation, while simultaneously strengthening the Zigbee network throughout the home.
MINI-ZB2GS is a small but powerful dual-channel Zigbee smart switch designed for mounting in classic junction boxes (minimum depth 60 mm). It allows independent control of two loads with a total resistive load of up to 16 A, so you can easily automate two lights or appliances without replacing your existing switches.
Main Benefits of SONOFF MINI DUO MINI-ZB2GS

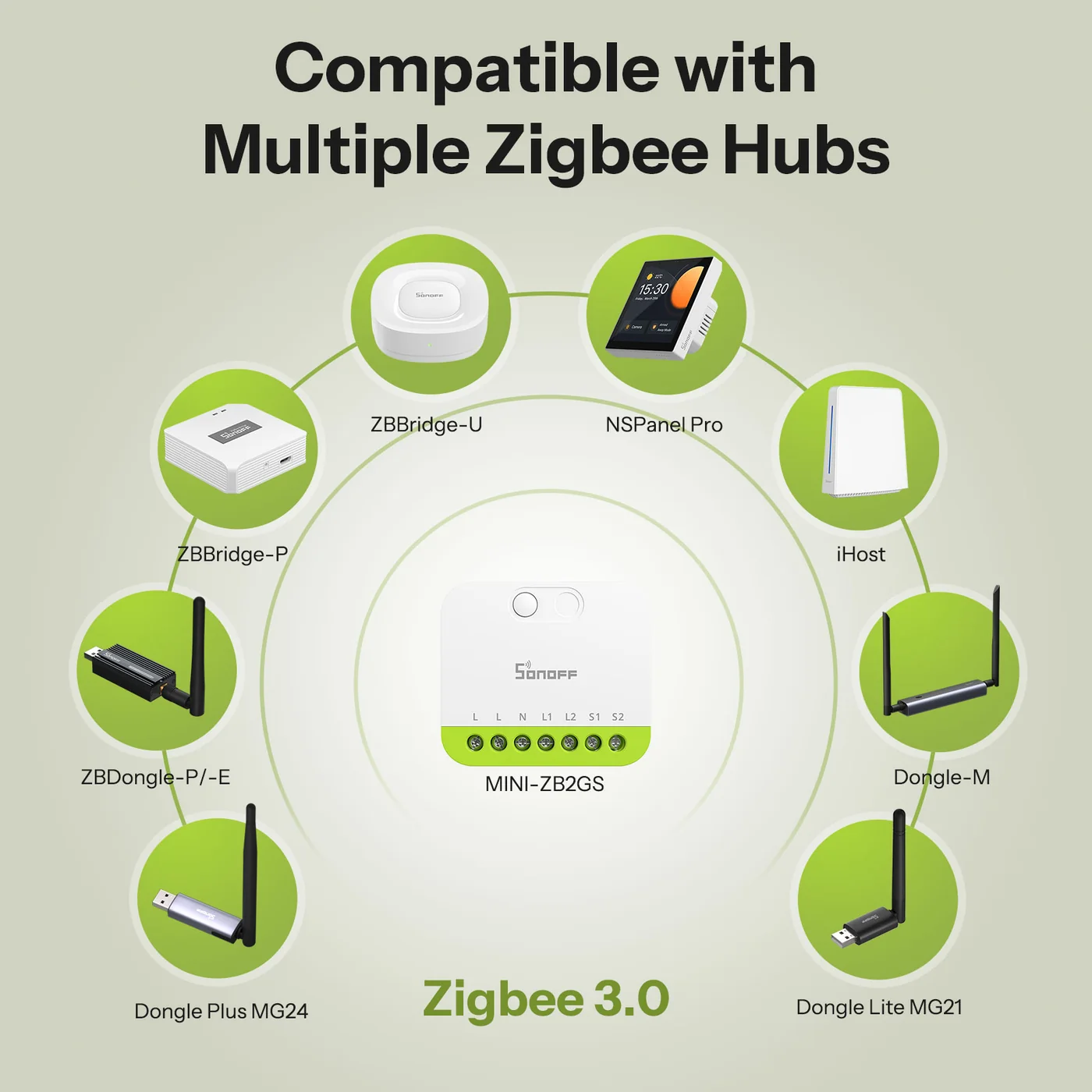

- Zigbee 3.0 Compatibility: Works with Zigbee 3.0 hubs and open-source platforms for interconnected automation and smart scenes.
- Dual Load Control: Two independent channels (max. 10 A per branch, 16 A total for resistive load) for independent management of two circuits.

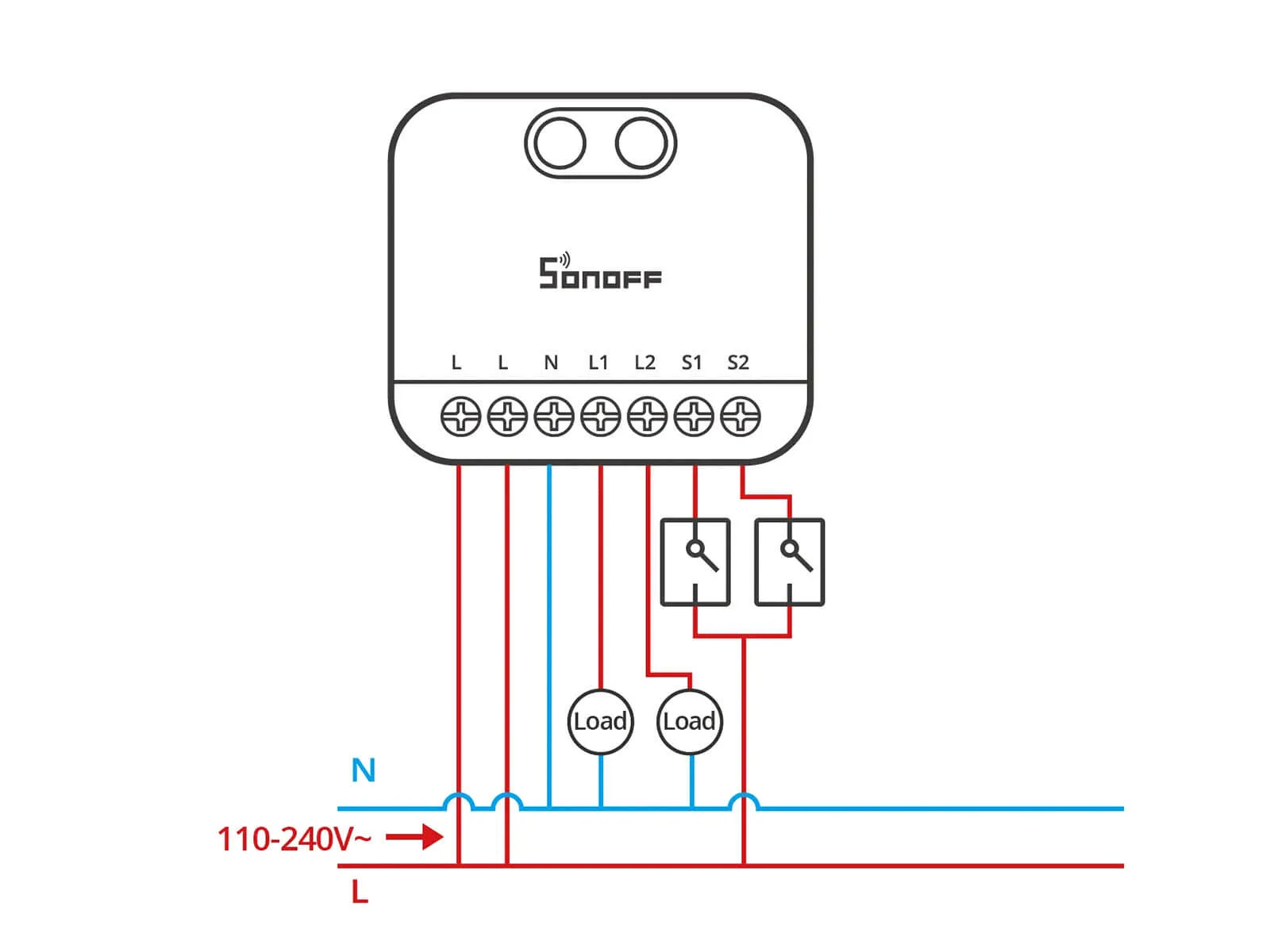

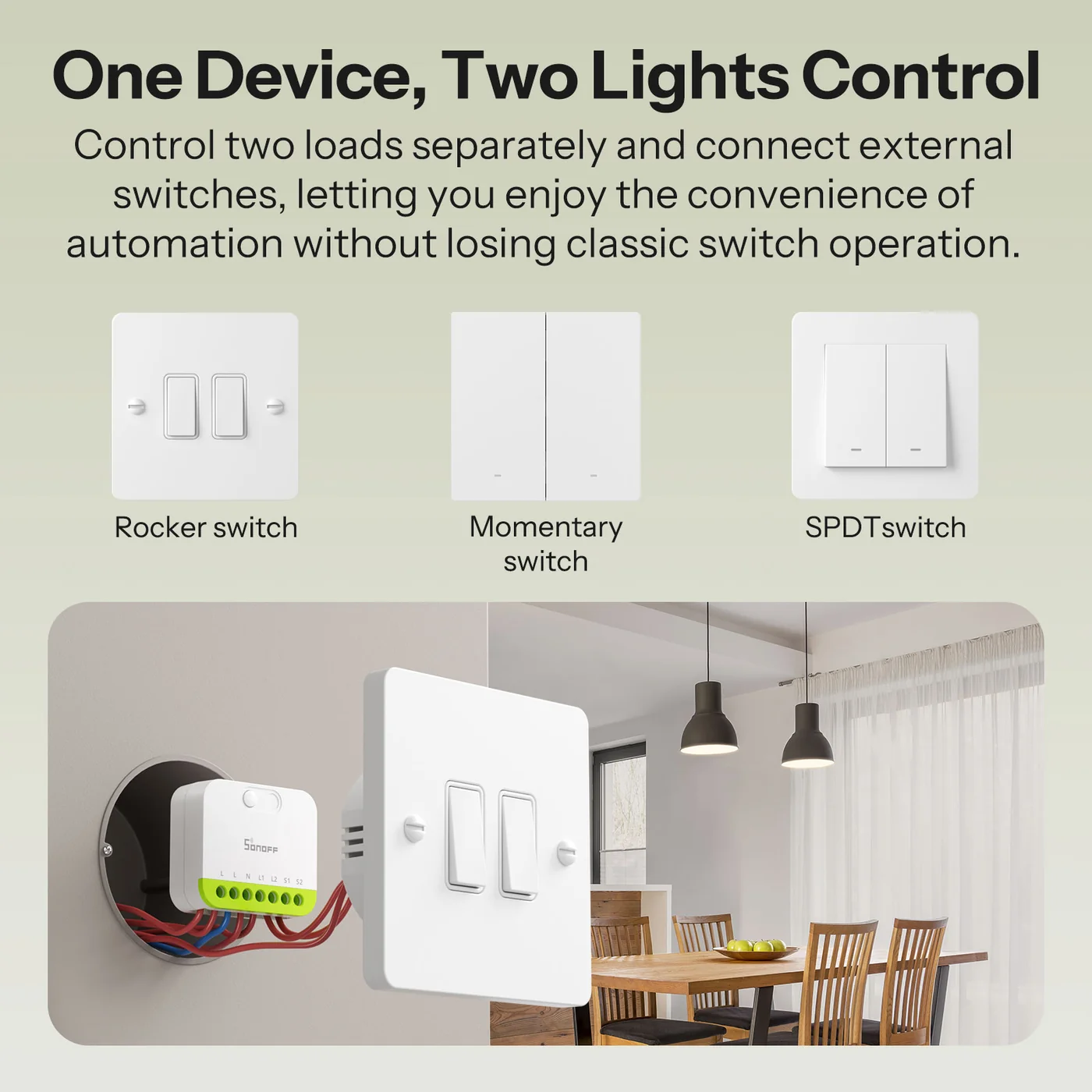

- Connection with Classic Switches: Option to connect existing wall switches for a combination of manual and smart control.

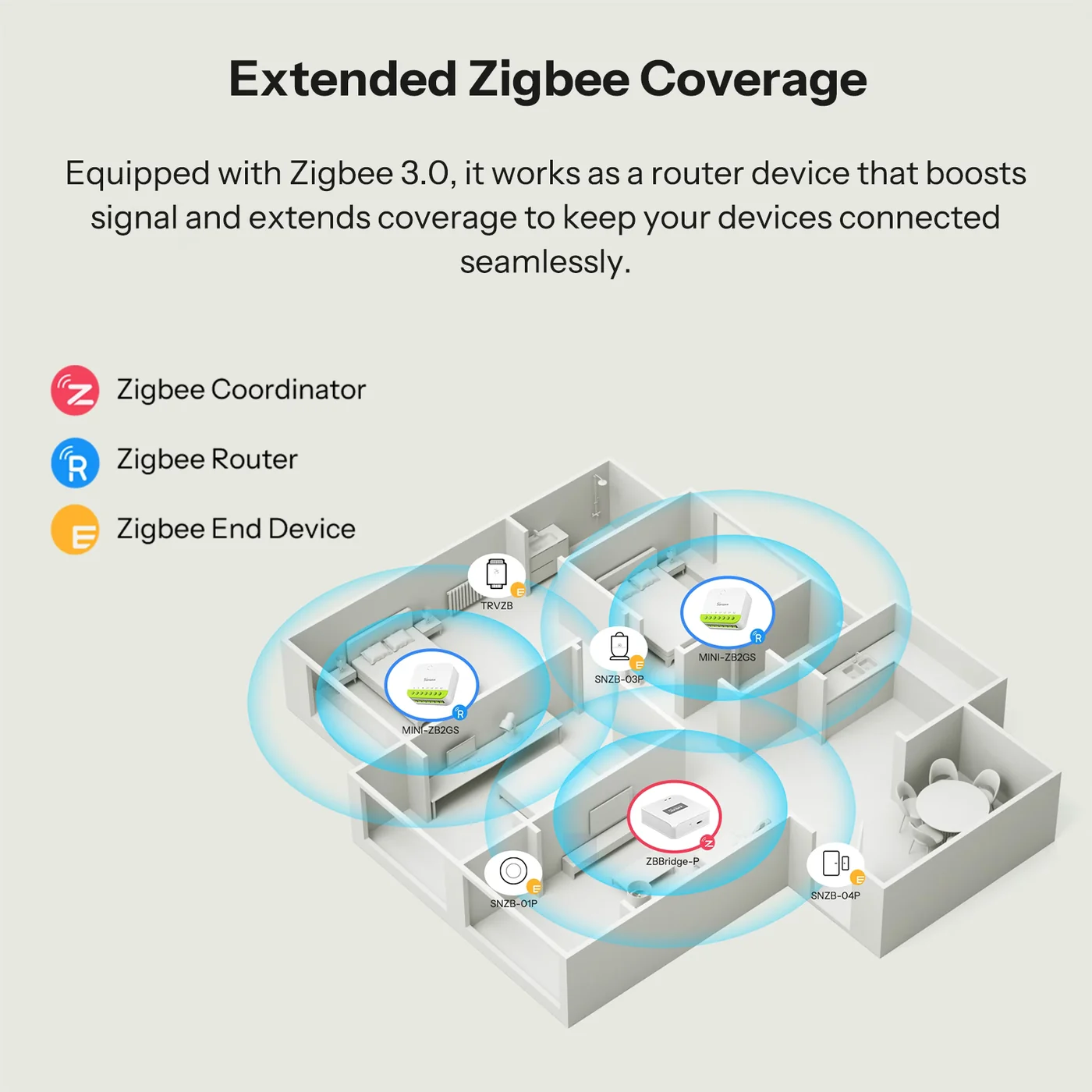

- Zigbee Signal Booster: Integrated Zigbee router with Turbo mode to strengthen and extend network coverage.
- App and Voice Control: Control via a compatible Zigbee gateway and the eWeLink platform with support for voice assistants.
- Advanced Automations: Timers, schedules, scenes, and adjustable power-on recovery behavior (last state, always on, always off).
- Detach Relay Mode: The physical switch can serve as a smart scene trigger without cutting power to smart bulbs.
- Local Control Without Internet: When connected to a Zigbee gateway, the device can be controlled locally even during an internet outage.

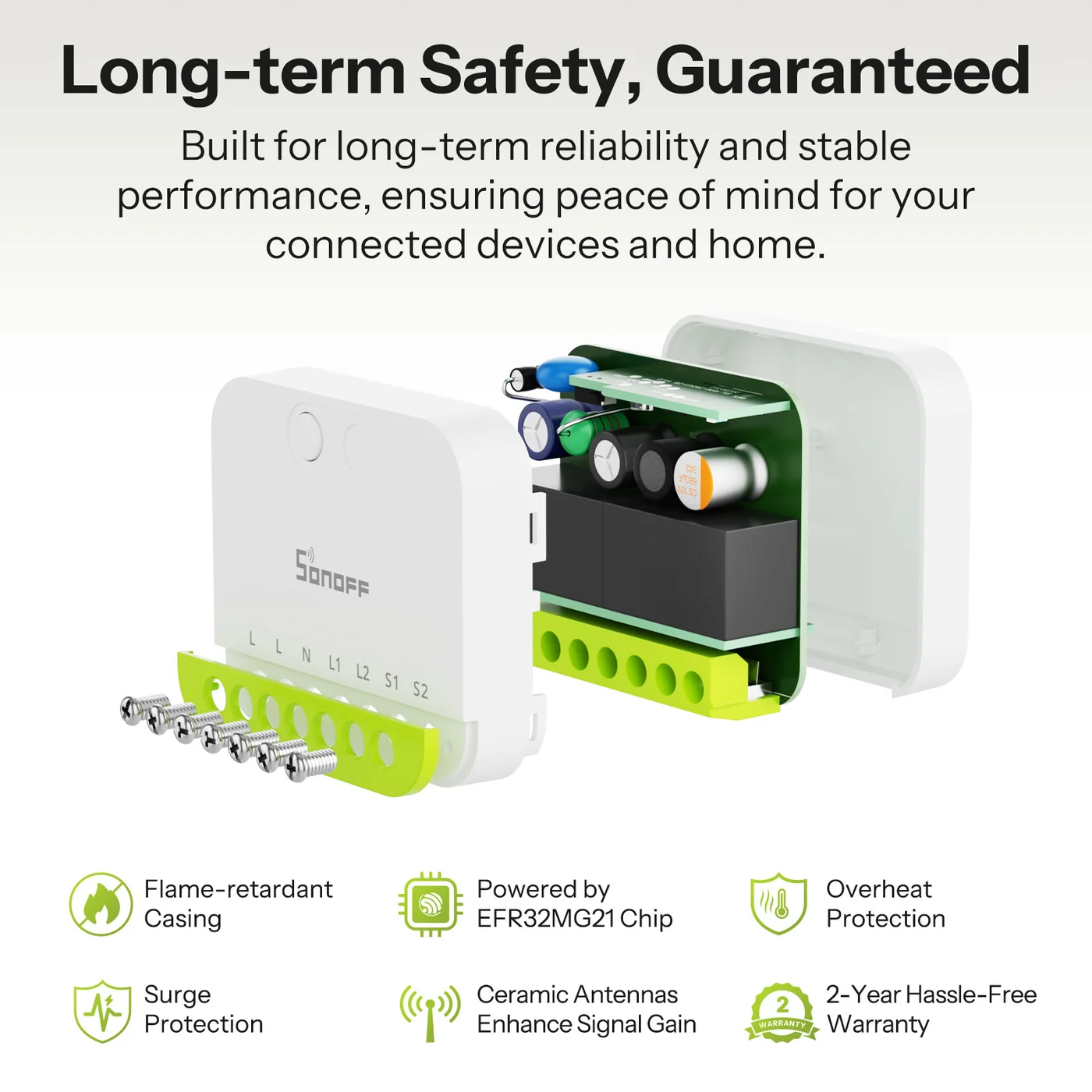

- Small and Safe Design: Compact dimensions for easy installation and protection against overheating and overvoltage for long-term reliability.
Typical Use:
- Controlling two lighting circuits (e.g., main light and LED strip) with one compact Zigbee module.
- Independent management of a light and a fan or a heating element from a single device.
- Using existing switches as smart buttons to trigger scenes in the Zigbee system.
- Expanding Zigbee coverage in larger homes while adding additional smart circuits.
Smart Scenes with Detach Relay and Power-on State Selection
The Detach Relay mode separates the physical switch from the relay, so the switch only serves as a signal for the Zigbee smart system. This is ideal when using smart bulbs or complex scenes where you don’t want to cut the power to the lights. The power-on state setting ensures that the SONOFF MINI DUO always returns to the desired state after a power outage.
SONOFF MINI DUO Specifications:
- Product Name: MINI DUO
- Product Series: MINI Extreme series
- Model: MINI-ZB2GS
- MCU: EFR32MG21
- Rated Voltage: 110–240 V~ 50/60 Hz
- Rated Load: 10 A per channel, 16 A MAX total (resistive load)
- Wireless Protocol: Zigbee 3.0, IEEE 802.15.4
- Function: Dual-channel Zigbee smart switch, Zigbee router/repeater
- Net Weight: 36.2 g
- Dimensions: 45 × 39.4 × 16.8 mm

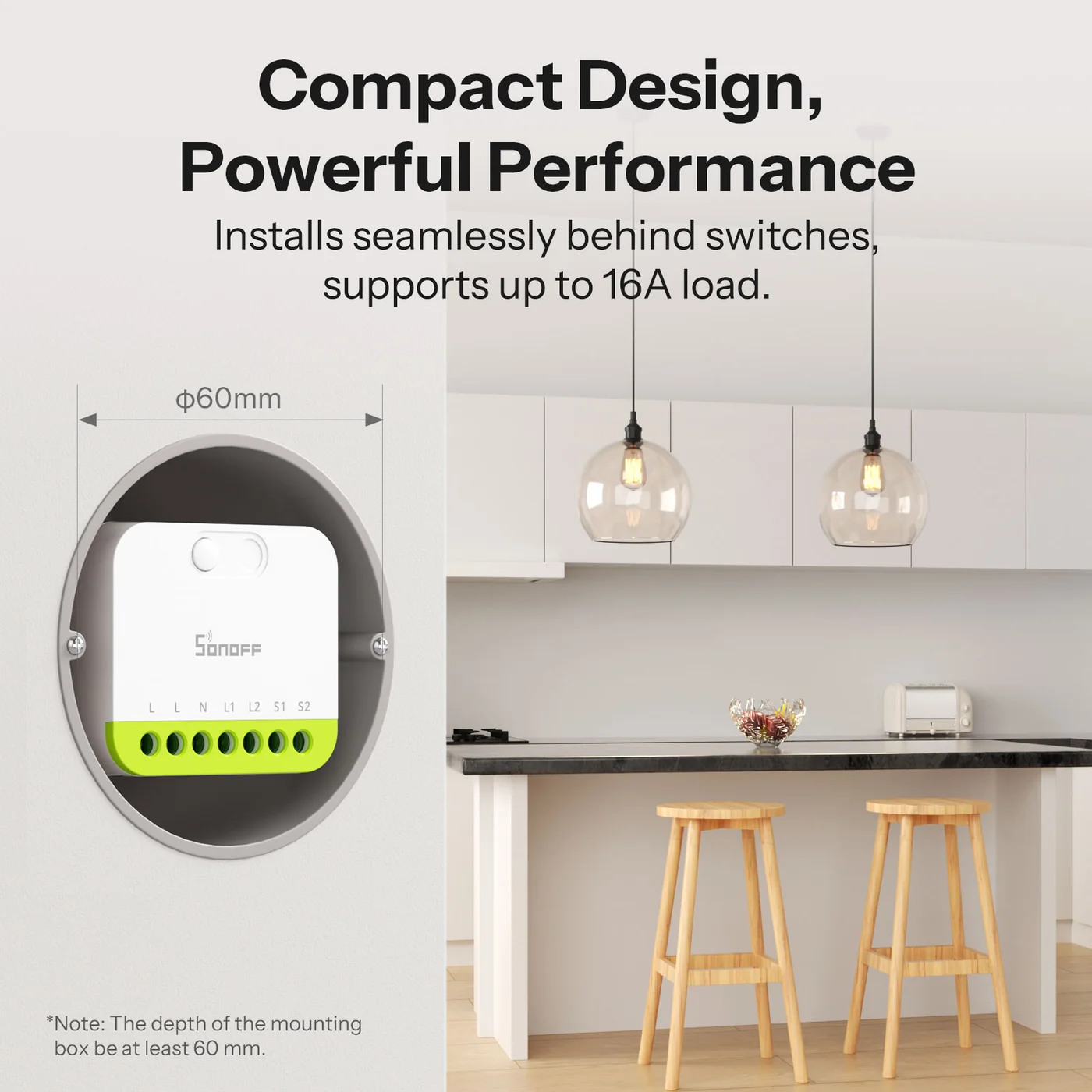

- Recommended Box Depth: ≥ 60 mm
- Operating Temperature: -10 ℃ to +40 ℃
- Operating Humidity: 5%–95% RH, non-condensing
- Casing Material: PC (flame-retardant plastic)
- Local Control: Yes, after connecting to a Zigbee gateway
- Zigbee Router: Yes, expands Zigbee network coverage
- FCC ID: 2APN5-MINIZB2GS
- Certification: CE / FCC / RoHS
